Chrome Coated Electrolytic Tin Plate For Meat Can 0.20mm Thickness tinplate SPTE TFS
Chrome Coated Electrolytic Tin Plate For Meat Can 0.20mm Thickness tinplate SPTE TFS
Tinplate(SPTE/ETP) is a common name for electroplated tin steel sheets, which refers
to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both
sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and
formability of steel with the corrosion resistance, solderability and aesthetic appearance
of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.

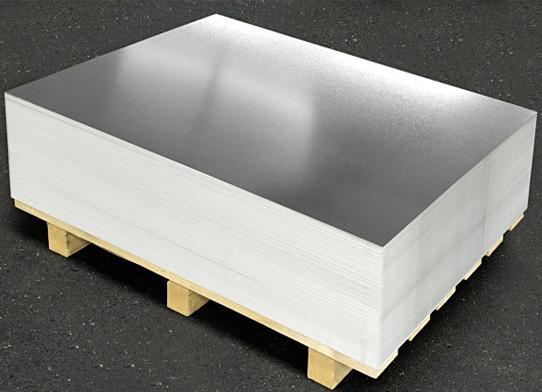

Electrolytic Tin Plate Show
Matt Surface Tinplate Welding Tin Plate Sheet
| Product | Tinplate Sheet |
| Standard | DIN EN 10202:2001, GB/T 2520-2008 |
| Material | MR PRIME FIRST GRADE |
| Thickness | 0.15- 0.45mm (tolerance -/+0.01 mm) |
| Width | 700~1050mm (Tolerance: 0~3mm) or |
| Cutting Length | 700~1150mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
