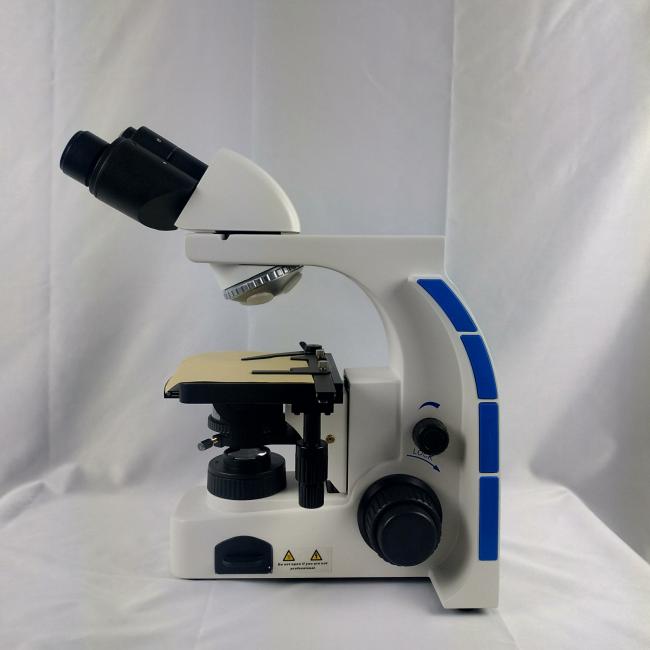

Upright Binocular Compound light Microscope with Infinity Color Corrected System
Upright Binocular Compound Microscope with Infinity Color Corrected System
Usage
Binocular Bright Field micrscope LB-202 is widely used for biology medicine agriculture and industry field, this light microscope is the ideal instrument in medical treatment, teaching demonstration and scientific research an so on.
Features
1. With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μ M
3. With Kohler illumination, 6V/20W halogen lamp with brightness control

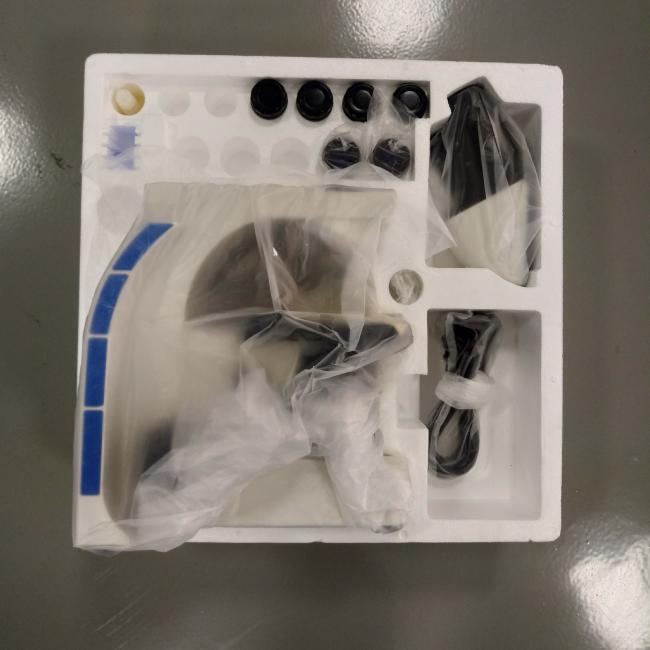

Standard delivery
Main unit: 1pcs

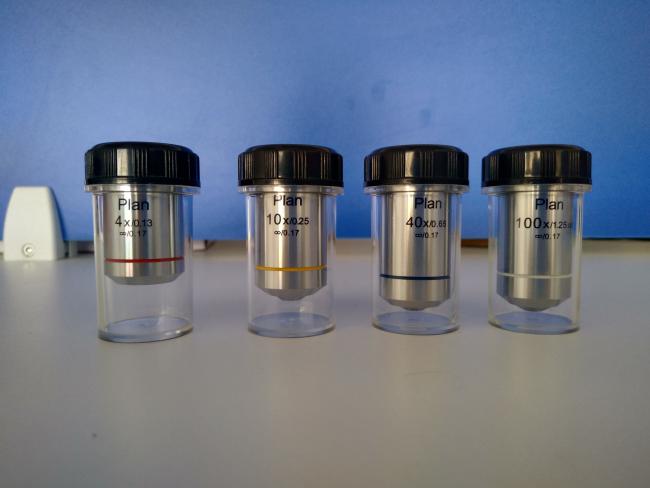

4x, 10x, 40x, 100x(oil) plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Blue filter: 1pcs
Anti-dust cover: 1pcs
Specification
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 60x (option), 100x(oil) |
| Mechanical movable stage | Size: 156*138mm Travel: 76mm*54mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/20W halogen bulb |
| Power supply | 110V/220V |
