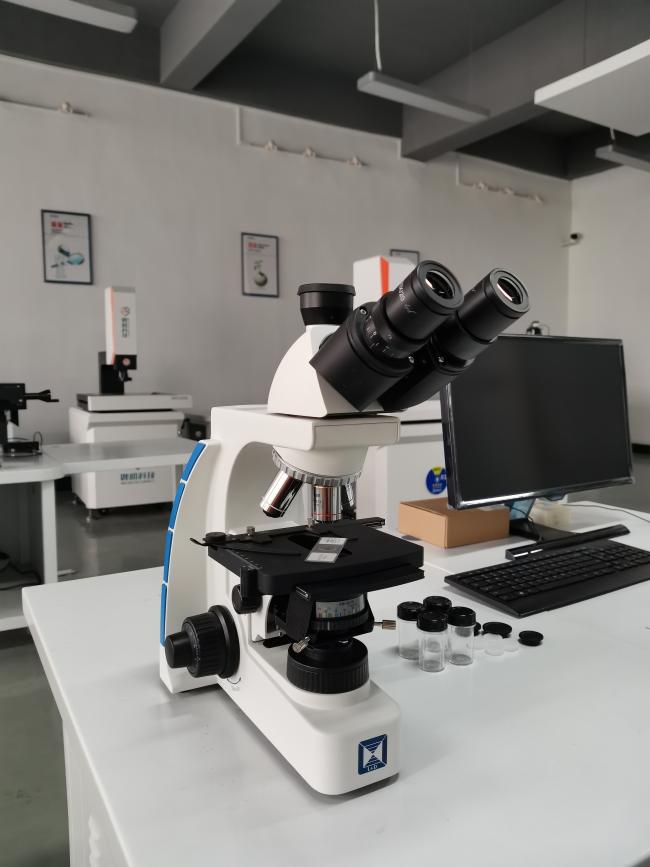

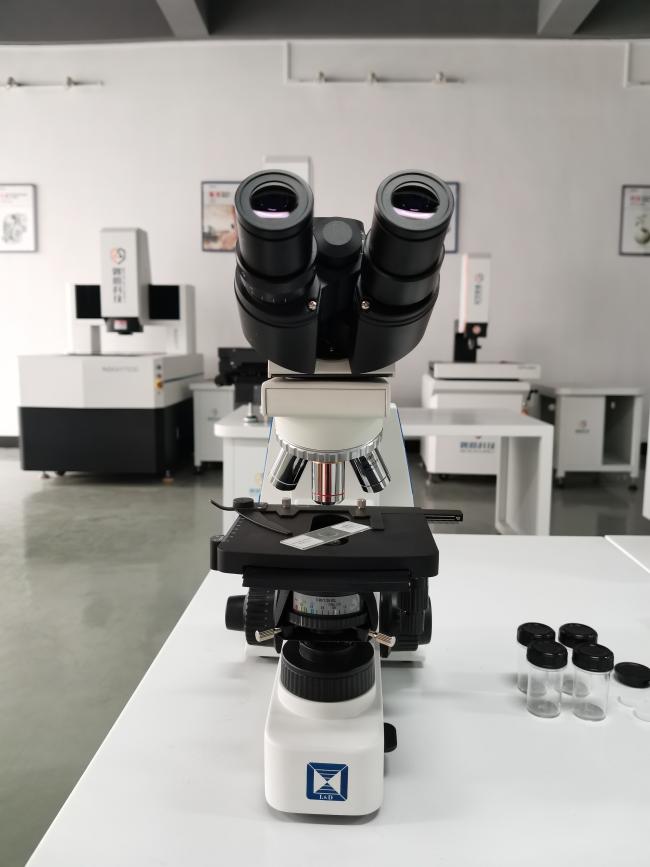

Trinocular Upright Biological Compound Microscope LB-302
Usage
Trinocular Biological micrscope LB-302 is widely used for biology medicine agriculture and industry field, this light microscope is the ideal instrument in medical treatment, teaching demonstration and scientific research an so on.
Features
1. With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μ M
3. With Kohler illumination, 6V/20W halogen lamp with brightness control
Standard delivery
Main unit: 1pcs
4x, 10x, 40x, 100x(oil) plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Blue filter: 1pcs
Anti-dust cover: 1pcs
Technical data
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 100x(oil) |
| Mechanical movable stage | Size: 156*138mm Travel: 76mm*54mm |
| Interpupillary distance | 52mm-75mm |
| Trinocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/20W halogen bulb |
| Power supply | 110V/220V |
