Dark Field Objective 1500X Upright Metallurgical Microscope
Price:
negotiation
MOQ:
1 Piece
Delivery Time:
6 working days
Brand:
L&D
Product Description
Usage

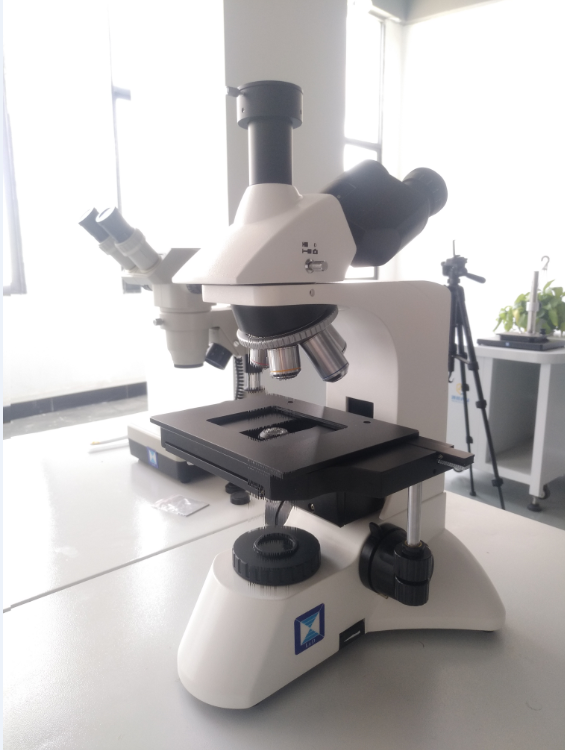

Upright bright & dark field Metallurgical Microscope LM-306 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) For bright and dark field observation
4) For Differential Interference contrast observation, DIC observation
Standard delivery
- Main unit: 1pcs

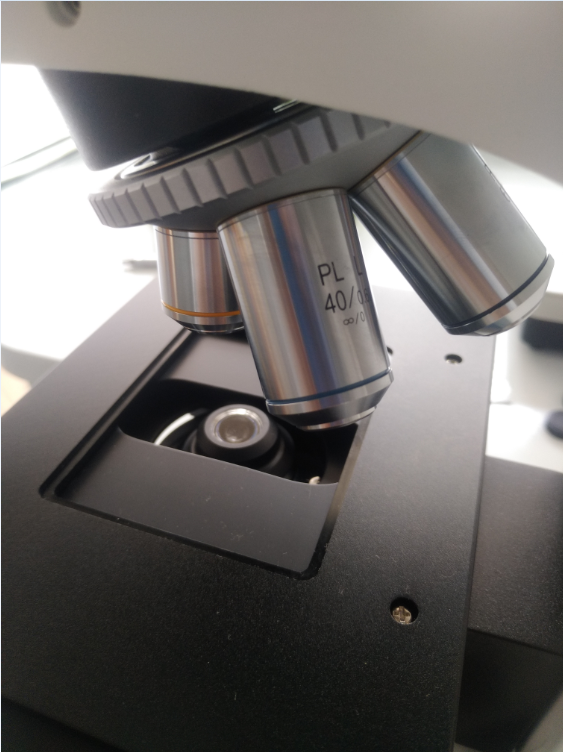

- 5x, 10x, 20x, 40x bright & dark field objective lens: 1pc each
- 12V/50W Osram halogen bulb: 1pcs
- Green, blue and yellow filter: 1pcs each
- Polarizer and analyzer: 1pcs
- Anti-dust cover: 1pcs
Optional accessories
- 50x, 60x, 80x, 100x bright & dark field objective
- DIC observation unit
- 0.5x, 1x, C-mount camera adapter
- 5M Pixel digital CCD camera
- Analysis software
- Examine software
Technical data
| Eyepiece | WF10X/20 |
| Objective lens | 5x, 10x, 20x, 40x |
| Mechanical movable stage | Size: 210*140mm Travel: 75mm*50mm |
| Interpupillary distance | 53mm-75mm |
| Binocular tube | Inclined 30º. |
| Diopter adjustment | ±5 diopter |
| Illumination | 12V/50W halogen bulb |
| Power supply | 110V/220V |
