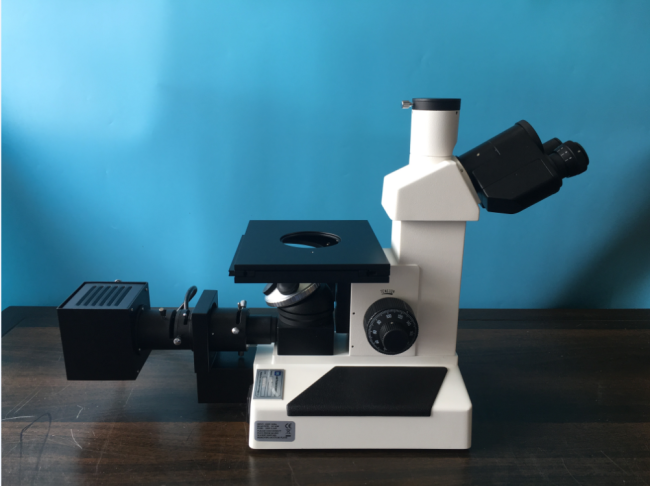

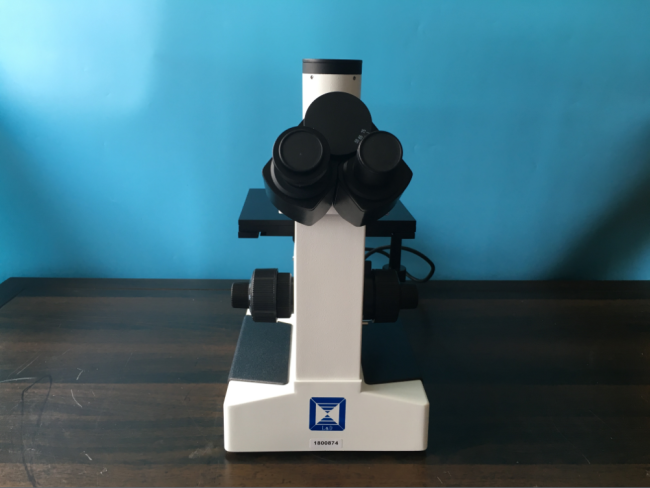

Inverted 100x LIM-303 Confocal Scanning Microscope
Price:
negotiation
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
L&D
Product Description
Usage
Inverted Metallurgical Microscope LIM-303 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
Standard delivery
Main unit: 1pcs
10x, 20x, 40x, 100x(oil) plan achromatic objective lens: 1pc each
6V/20W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Anti-dust cover: 1pcs
Optional accessories
50x, 60x, 80x, 100x(dry) plan achromatic objective lens
0.5x, 1x, C-mount camera adapter
5M Pixel digital CCD camera
Analysis software
Examine software
Technical data
| Eyepiece | WF10X/18 |
| Objective lens | 10x, 20x, 40x, 100x(oil) |
| Mechanical movable stage | Size: 180*150mm Travel: 15mm*15mm |
| Interpupillary distance | 53mm-75mm |
| Binocular tube | Inclined 30º. |
| Diopter adjustment | ±5 diopter |
| Illumination | 6V/20W halogen bulb |
| Power supply | 110V/220V |
