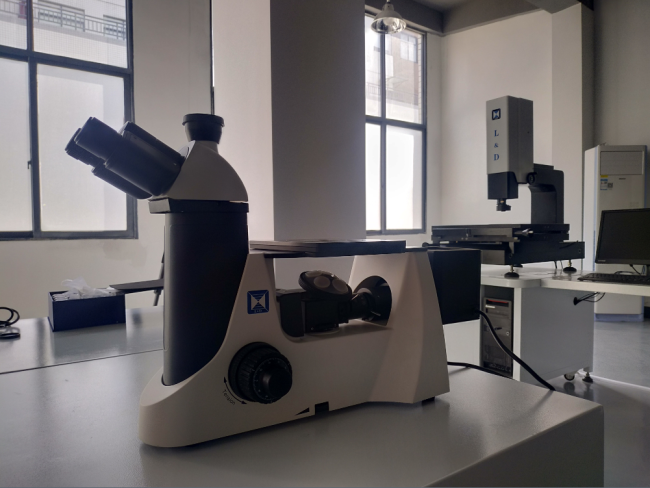

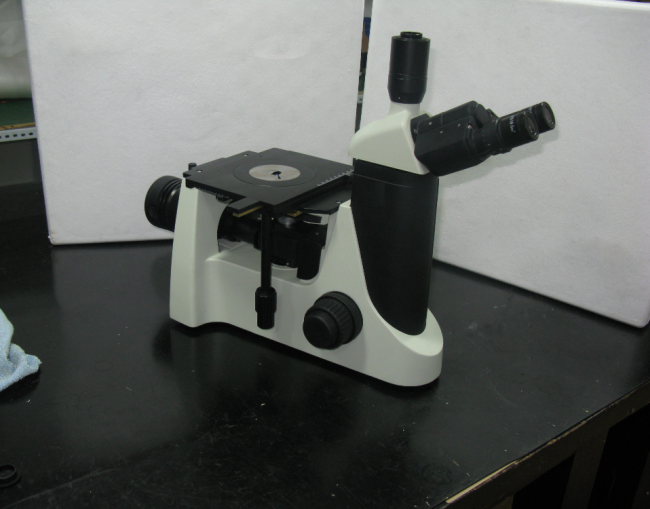

Routine Laboratory 50X-2000X Inverted Light Metallurgical Microscope
Usage
Inverted Metallurgical Microscope LIM-302 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) Can connect digital CCD camera
Standard delivery
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pcs each
12/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Polarizer and analyzer: 1pcs
Anti-dust cover: 1PCS
Optional accessories
5x, 100x (oil) plan achromatic objective
0.5X, 1X, C-mount adapter
5.0M, 10.0M, 14.0M, 20.0M pixel digital camera
Color CCD camera
HDMI camera (built in measurement software)
Professional Metallurgical software
| Eyepiece | WF10X/20 |
| Objective lens | 10x, 20x, 50x, 80x |
| Mechanical movable stage | Size: 180mm*155mm Travel: 80mm*50mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 12V/50W halogen bulb |
| Power supply | 110V/220V |
