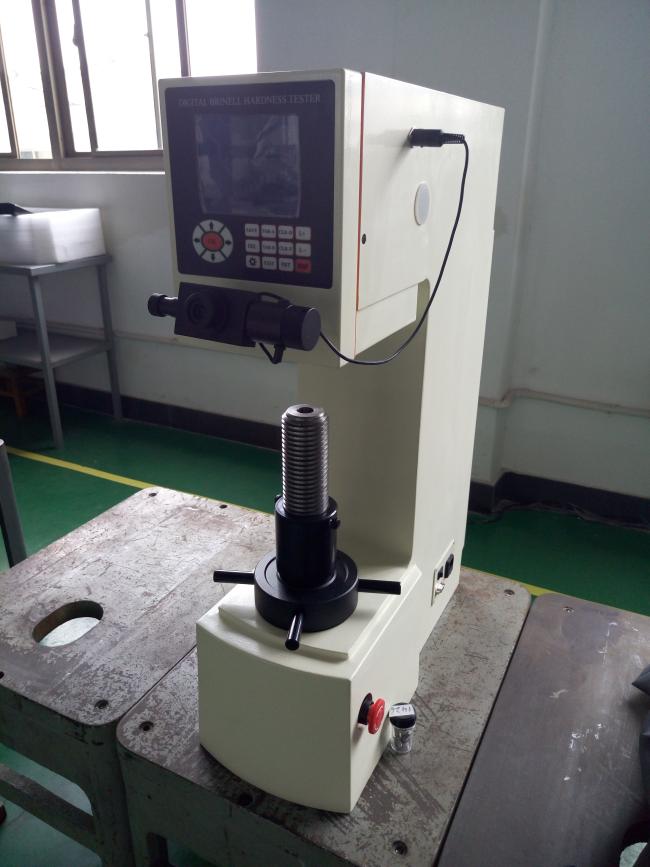

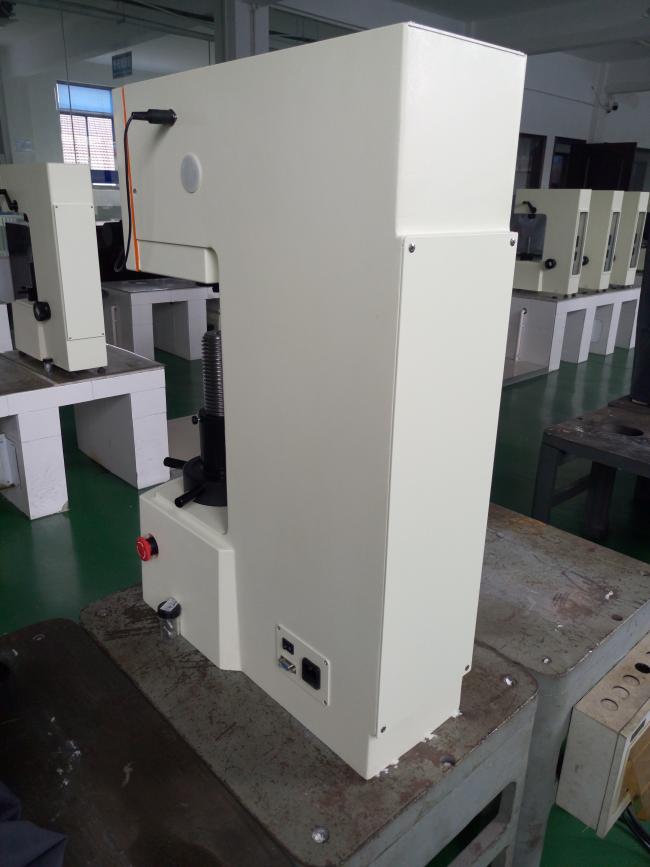

Big LCD screen HBD-3000 Digital Brinell Hardness Test Equipment
Price:
negotiation
MOQ:
1 Piece
Delivery Time:
7 DAYS
Brand:
HARDRULER
Product Description
Usage
Brinell hardness tester is mainly used to organize uneven hardness test forged steel and cast iron, forged steel Brinell hardness and tensile tests and gray cast iron has a good relationship.
Brinell hardness tester can be used for non-ferrous metals and mild steel, the use of small diameter ball indenter can measure small size and thin materials. Brinell hardness tester used for testing materials and semi-finished products, due to the large indentation is generally not used for product testing.
Digital Brinell Hardness Tester HBD-3000 is suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Features & Advantage
1. Accurate reliable and durable tester at a very cheap price
2. Closed loop load technology enhances the accuracy
3. Large LCD screen, menu operated
4. Brinell video microscope system optional
5. Accuracy conforms to EN-ISO 6506, ASTM E10, GB/T231.2
Specifications
| Product name | Digital Brinell Hardness Tester | |
| Model | HBD-3000 | |
| Testing load | gf | 62.5,100,125,187.5,250,500,750,1000,1500,3000 |
| N | 612.9, 980,1226,1839,2452,4900,7355,9807,14700,29400 | |
| Testing range | HBW8~HBW650 | |
| Dwell time | Adjustable 0~60s | |
| Hardness indication | LCD display | |
| Output data | RS-232C/printer | |
| Magnification of microscope | 20x digital microscope | |
| Max. height of specimen | 225mm | |
| Instrument throat | 135mm | |
| Dimension (L*W*H) | 890*720*750mm | |
| Gross/Net weight | 160kg/130kg | |
| Power supply | 220V or 110V AC, 50 or 60Hz | |
| Accuracy | Conforms to EN-ISO 6506,ASTM E10, GB/T231.2 | |
