HBS-3000 Digital Brinell Hardness Tester Laboratory Test Equipment
Price:
negotiation
MOQ:
1 Piece
Delivery Time:
7 working days
Brand:
HARDRULER
Product Description

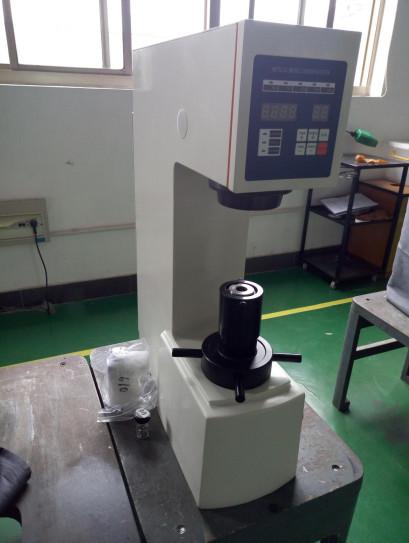

Digital Brinell Hardness Tester With LCD Display (HBS-3000)
Usage
Digital Brinell Hardness Tester HBS-3000 is suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Features & Advantage
1. Accurate reliable and durable tester at a very cheap price
2. Closed loop load technology enhances the accuracy
3. Accuracy conforms to EN-ISO 6506, ASTM E10, GB/T231.2
Specifications
| Product name | Digital Brinell Hardness Tester | |
| Model | HBS-3000 | |
| Testing load | gf | 62.5,100,125,187.5,250,500,750,1000,1500,3000 |
| N | 612.9, 980,1226,1839,2452,4900,7355,9807,14700,29400 | |
| Testing range | HBW3.18~HBW650 | |
| Dwell time | Adjustable 0~60s | |
| Hardness indication | LCD display | |
| Magnification of microscope | 20x digital microscope | |
| Max. height of specimen | 205mm | |
| Instrument throat | 130mm | |
| Dimension (L*W*H) | 890*720*750mm | |
| Gross/Net weight | 160kg/130kg | |
| Power supply | 220V or 110V AC, 50 or 60Hz | |
| Accuracy | Conforms to EN-ISO 6506, ASTM E10, GB/T231.2 | |
Standard delivery
| Main unit | 20x reading microscope | 2.5mm, 5mm, 10mm indenter |
| Ø 60 Flat Anvil | Ø 200 Flat Anvil | Ø80mm V-notch Anvil |
| Large Flat Anvil | Small Flat Anvil | V-notch Anvil |
| Hardness Test Block | Adjustable feet | Accessories case |
| Anti-dust cover | Instruments certificate | Installation & user manual |
