20/60 Degrees Sheen Gloss Meter
Price:
negotiation
MOQ:
1 Piece
Delivery Time:
3 working days
Brand:
L&D
Product Description

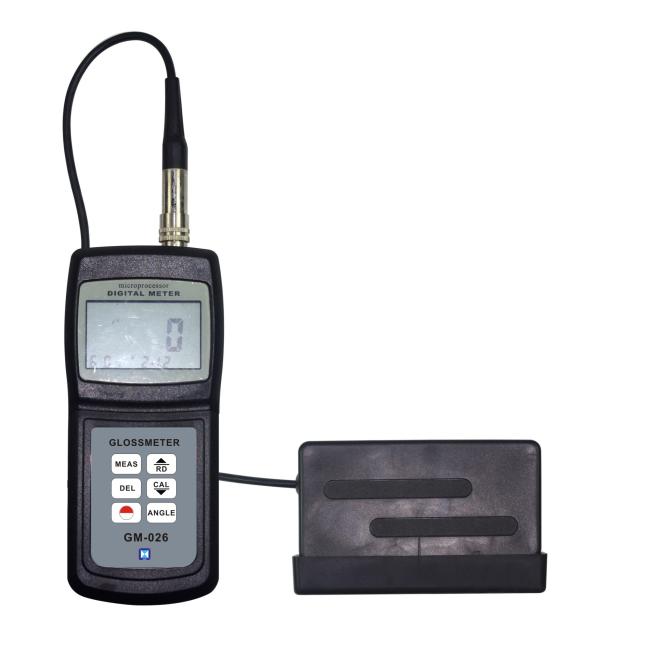

Testing Instrument Two degrees Gloss Meter GM-2
Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspectionof plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Features:
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Backlight display, suitable for low light environment.
* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth ™ data output" choice.
Deatails:
Display |
4 Digits Backlit LCD |
| Measuring Geometry | 20 / 60 Degrees |
| Range | 0.1 ~ 200 Gloss Units |
| Gloss Units | GU |
| Accuracy | ± 1.0 GU |
| Resolution | 0.1 GU |
| Repeatability | ± 0.5 GU |
| Measuring Area | 7 x 14 mm(Ellipse) |
| Data Memorized | 254 Groups |
| Working Condition | Temperature: 0 - 40 °C Humidity: < 85 % |
| Power Supply | 4 x 1.5v AAA size (UM-4) battery |
| Dimensions | Unit: 156 x 67 x 28 mm |
| External Probe: 58 x 28 x 108 mm | |
| Weight | 190 g (Not Including Batteries ) |
Standard Accessories :
1. Main Unit
2. Holder With Calibration Standard
3. External Probe
4. Optical Cleaning Cloth
5. Carrying Case(B07)
6. Operation Manual
Optional Accessories:
1. USB, RS-232 Data Cable With Software
2. Bluetooth Data Out put With Software
