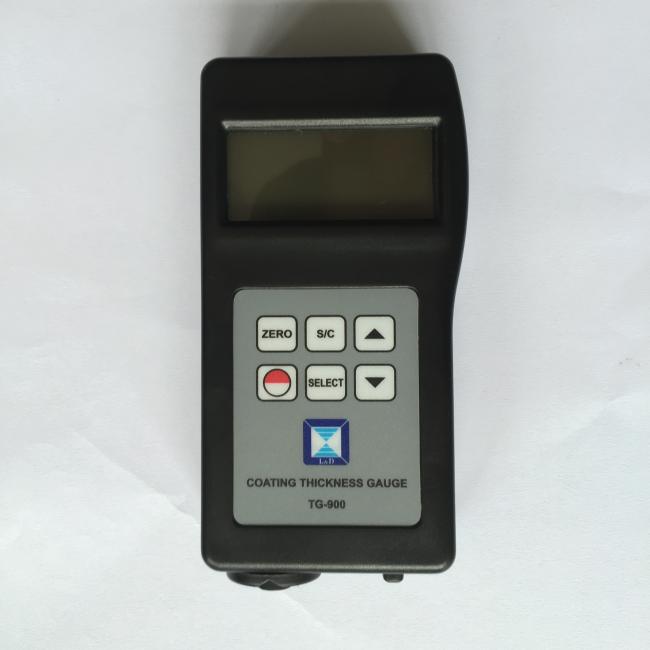

Magnetic Paint Thickness Tester Meter Gauge
Application
1. TG-900F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-900N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
3. TG-900FN: 2 in 1, F&N type
Feature
1. with built-in probe(s)
2. Auto power off
3. Magnetic induction or eddy current operation principle

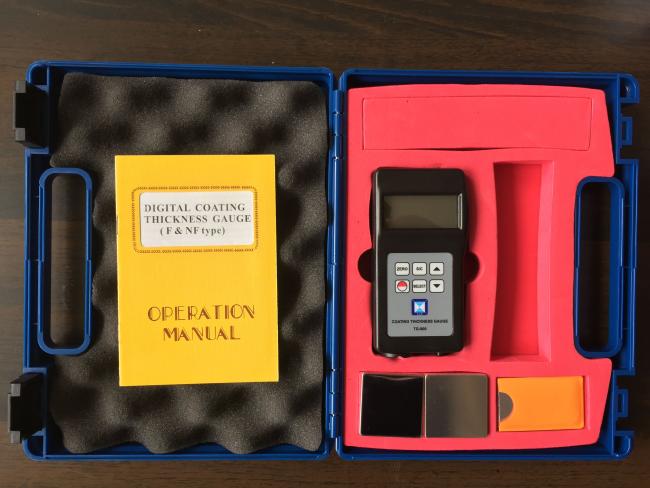

Standard delivery
Main unit
F type probe
N type probe
F calibration base set
N calibration base set
Calibration foil set
Carrying case
1.5V AAA battery
Optional Accessories
Cable and software for RS-232C.
Technical data
| Operation principle | Magnetic induction & eddy current (F/NF) |
| Measuring range | 0-1250μ m/0-50mil |
| Resolution | 0.1μ m/1μ m |
| Accuracy | ± 1-3%N or 2.5μ m |
| Minimum work piece diameter | F: convex 1.5mm/0.06" , concave 25mm/0.98" NF: convex 3mm/0.12" , concave 50mm/1.97" |
| Minimum measuring area | diameter5mm/0.24" |
| Minimum sample thickness | 0.3mm/0.012" |
| Power supply | 4× 1.5V AAA batteries |
| Dimension | 124× 62× 30mm |
| Weight | 82kg |
