1.2mm Stainless Steel Air Shower Tunnel Infrared Auto Sliding Doors
1.2mm Stainless Steel Air Shower Tunnel Infrared Auto Sliding Doors
System: Infrared Automatic reaction air showering system,
Interlock: Electric
Showering time: The 0-99 seconds adjustable (air showering time display)
Structure: Sliding doors by auto door system in panasonic brand
Brushless DC 24V 50W motor
Opening speed: 14-40 cm/s (adjustable)
Closing speed:13-38cm/s(adjustable)
Opening time: 0-9 s adjustable (With collision rebound function)
External frame: Stainless steel or coated cold-roll steel
Door, nozzle: stainless steel
Filter: Pre filter and hepa filter
Fan: Low vibration, low noise, imported or domestic fan
Winds: 20~28 m/s
Power: 220v/110v/380v
Optional: Protective crash fence or barriers at the sides of the entrance
Automatic sliding door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. wireless press button switch
4. Contact button switch
|
Model |
HLPY1700-2 |
HLPY1700-3 |
|

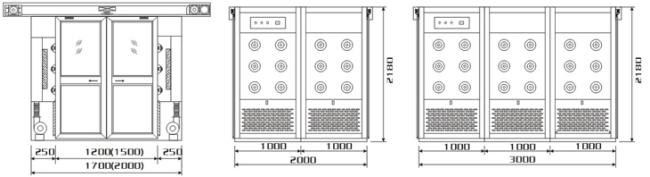

Overall Size(mm) |
W1700*D2000*H2180 |
W1700*D3000*H2180 |
|
Internal Size(mm) |
W1200*D2000*H1980 |
W1200*D3000*H1980 |
|
Air Flow Speed(m/s) |
18-22 |
|
|
Number Of Nozzles |
24 |
36 |
|
Air Showering Time (S) |
10s Factory Setting,10- 99s Adjustable |
|
|
Material Of Main Body |
1.2mm Power Coated Steel, Surface Electrostatic Spraying |
|
|
Material Of Door |
SUS 201/ SUS 304 stainless steel |
|
|
HEPA Filter |
610*610*69*4pcs,99.99%@0.3um |
610*610*69*6pcs,99.99%@0.3um |
|
Fan Power (W) |
750*4 |
750*6 |
|
Light Power (W) |
20*2 |
20*3 |
|
Voltage Supply |
380v 50hz |
|
