Aluminum Alloy Ip65 Waterproof Panel PC Capacitive Touchscreen
10-Inch Front Panel Ip65 Waterproof Panel Pc With Intel J1900 Cpu
Features
1. Industrial Waterproof Panel Pc Which can work in -20-70C environment
2. 350Cd/m2 brightness
3. Front IP65 waterproof
4. Interface with sealed waterproof cap
Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) Capacitive, IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 4GB (up to 8G) | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.1’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1280(H)x800(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1*RS232(RS485/RS422 optional) | |
| USB | 2xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | ------- | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

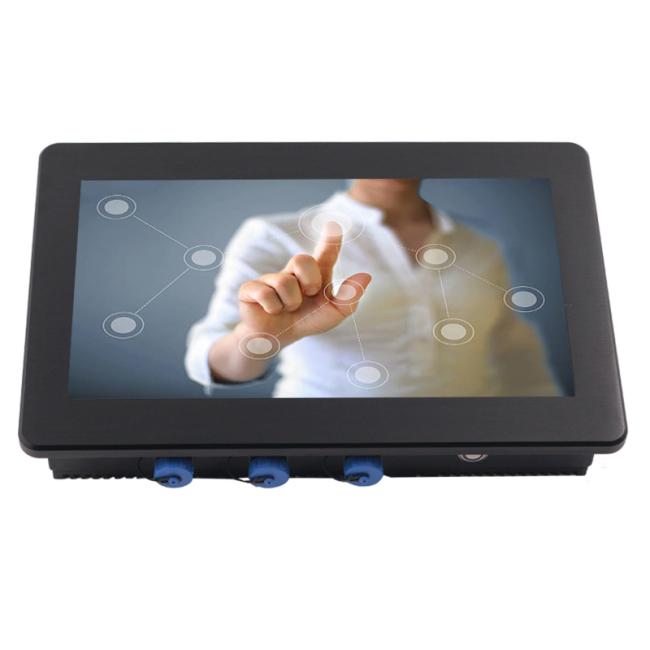

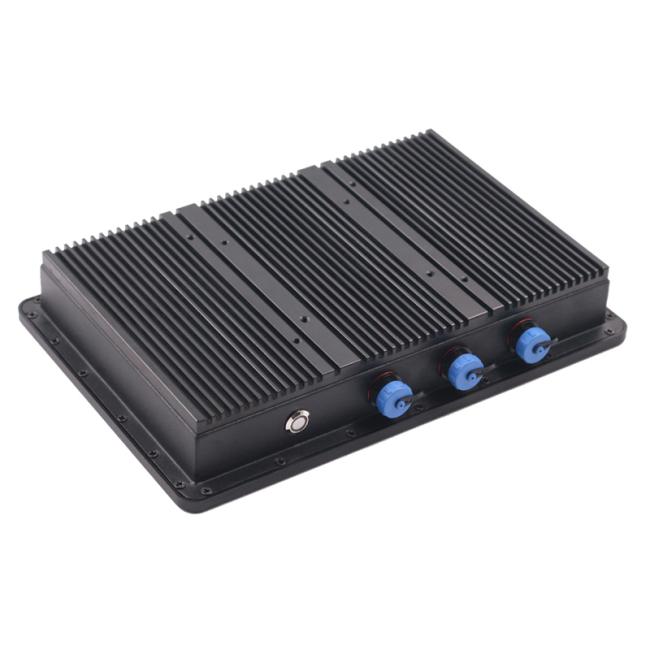

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is oaky for us.
