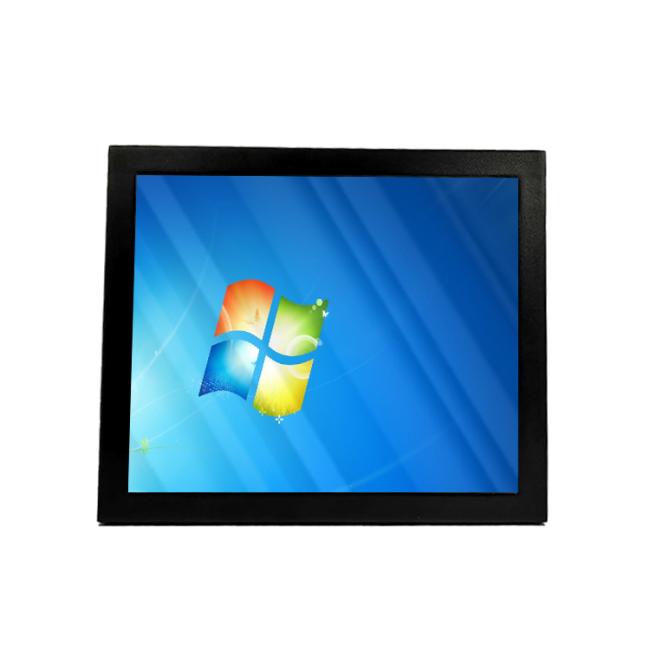

220V AC PCAP Touch Waterproof Panel PC Metal Case
220V Pwoer Supply Front IP65 Waterproof Panel Pc 17-Inch
Features
1. Available cpu
Intel J1900 / J3160 / I3/ I5 / I7
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. IP Grade
Front IP65, full waterproof optional
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
6. Power Supply
220V AC / 12V DC / 24V DC
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 17’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1280(H)x1024(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | -----(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | 1xHDMI | ||
| VGA | 1xVGA | ||
| Function | Front IP65 | ||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

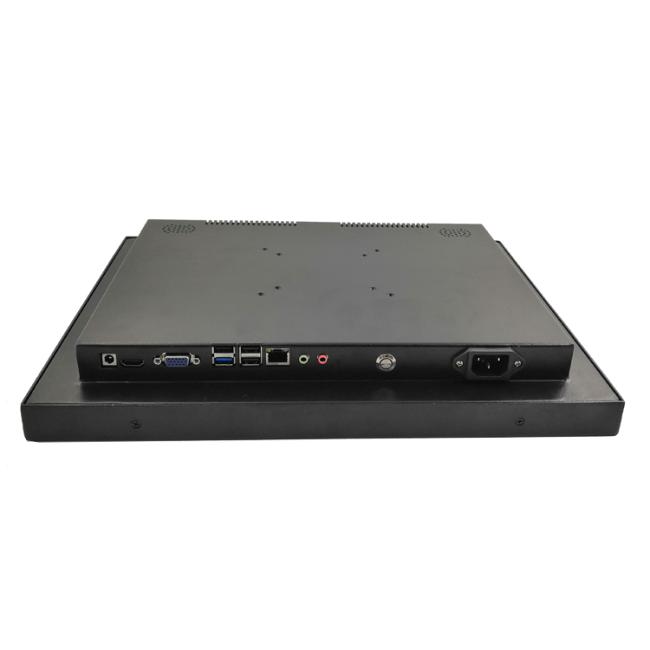

Detailed Image
Industrial PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
