Stainless Steel Android Touch Panel PC VESA Mount
Stainless Steel Waterproof IP65 Android Touch Panel Pc 7-Inch
Features
1. Available cpu
RK3288/ RK3399 / Freescale / Amlogic S922X
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. WIFI bluetooth optional
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
6. Waterproof
Front IP65 / Full sealed IP65/67
Configuration
| Processor System | CPU | RK3399 | |
| Memory | 2GB/4GB | ||
| Storage | 8G EMMC(8G/16G/32G optional) | ||
| Operation System | Android 8 | ||
| LCD Panel Characteristics | Screen Size | 7’’ LcD Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x600(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 500nits | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | PoE | it support 802.3af and 802.3at.(Optional) | |
| USB | 2xUSB2.0 | ||
| LAN | RJ45 as PoE power supply | ||
| HDMI | ------ | ||
| SD card slot | ------ | ||
| Function | Waterproof IP65 | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+metal | |
| Color | Black/Silver/White | ||
| Mounting | Wall mount/ Panel mount | ||

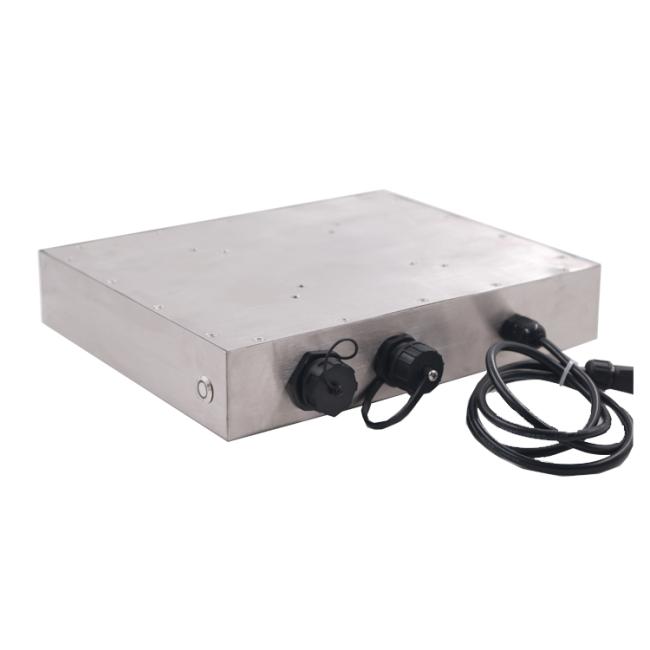

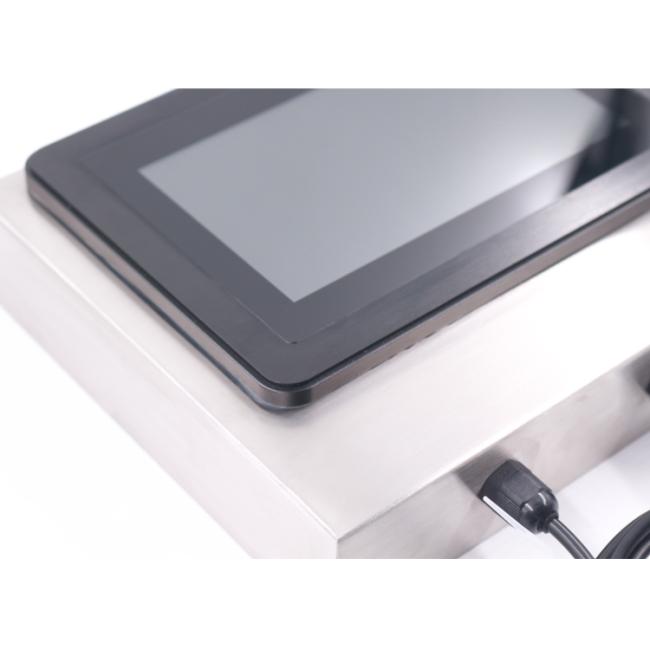

Detailed Image
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Waterproof
4G modem
GPS
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
