Metal 17in 350nits Capacitive Touch screen Monitor PCAP
Features
1. 17-inch industrial desktop monitor
2. Adopt multi-touch capacitive / resistive touch / Ir touch
3. Industrial LCD panel, wide viewing angle, high nits, true color
4. Sturable rugged enclosure which is for harsh environment
Full Sepcification
| LCD Panel Characteristics | Screen Size | 17’’ LED Panel | ||
| Touchscreen Type | PCAP Touch screen | |||
| Resolution | 1280(H)x 1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 500:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
|
USB | yes | ||
| HDMI | yes | |||
| VGA | Yes | |||
| DVI | Yes | |||
| Optional Function | Full IP65 wateproof | |||
| 1000cd/m2 dalight readable | ||||
| Power button built-in | ||||
| Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

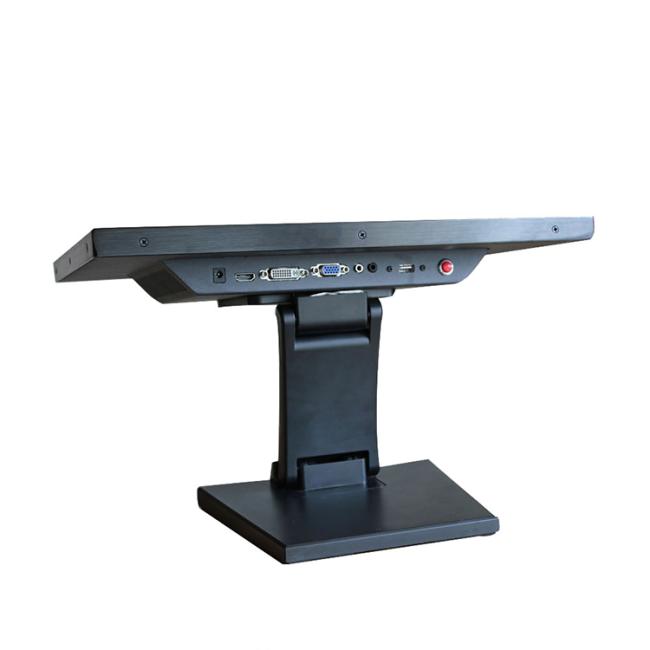

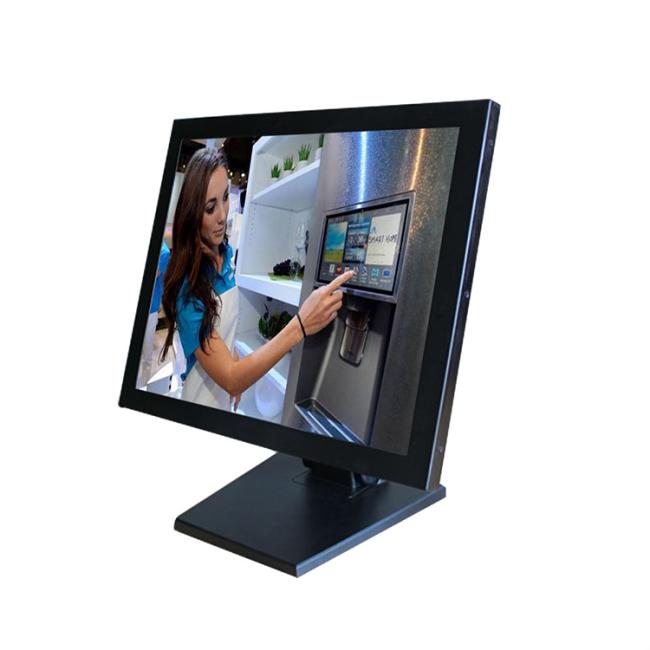

Detailed Image
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
