Clutch Disc 260*170*21*29.8 31250-0K060 2KD-FTV Toyota Clutch Kits

OE number of this clutch disc / Toyota Clutch Kits is 31250-0K205 / 31250-26241 / 31250-26172 / 31250-26170 / 31250-0K060 / 31250-0K203 / 31250-0K202 / 31250-0K204 / 31250-26171 / 31250-0K070 / 31250-25190 / 31250-26240. EXEDY number is TYD122U / TYD317. The size of this clutch plate is 260*170*21*29.8mm. The outer diameter is 260mm, the inner diameter is 170mm, hub profile is 29.8mm and the teeth quantity is 21. This clutch disk assembly is applicable for Toyota. Car model is HIACE IV Bus / LAND CRUISER 90 / HIACE III Box / HIACE IV Box / HILUX III Pickup. Engine / Applicaiton is 2KD-FTV / 1KD-FTV.

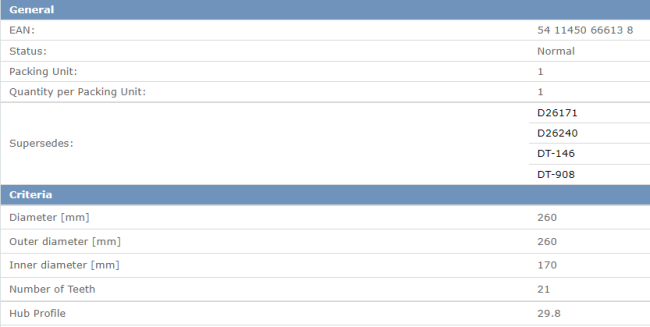

Product Specification

OE Number

ArtNum

BLUE PRINT	ADT33160
BLUE PRINT	ADT331103
BLUE PRINT	ADT33185
BLUE PRINT	ADT33166
BLUE PRINT	ADT33177
EXEDY	TYD122U
EXEDY	TYD317
HERTH+BUSS JAKOPARTS	J2202021





Used in Vehicles



Model	Engine	Displacement	Power	Hp	Type	Year
TOYOTAHIACE IV Bus (LH1_)						(1995/08 - /)
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Bus	06/10 - /
TOYOTALAND CRUISER 90 (_J9_)						(1995/04 - /)
LAND CRUISER 90 (_J9_) 3.0 D-4D (KDJ90, KDJ95, KDJ 125)	1KD-FTV	2982	120	163	Closed Off-Road Vehicle	00/10 - /
TOYOTAHIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_)						(1989/08 - 2004/08)
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.5 D-4D 4WD	2KD-FTV	2494	65	88	Box	01/08 - 04/08
TOYOTAHIACE IV Box (LXH1_, RZH1_, LH1_)						(1995/08 - /)
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Box	06/09 - /
TOYOTAHILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_)						(2004/11 - /)
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D 4WD	2KD-FTV	2494	75	102	Pickup	05/08 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	126	171	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	75	102	Pickup	05/07 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D (KUN16)	1KD-FTV	2982	120	163	Pickup	05/08 - 06/09
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	106	144	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	145	197	Pickup	08/05 - /
