8.5kw Metal Sheet Roll Forming Machine , 350H beam Roof Sheet Rolling Machine

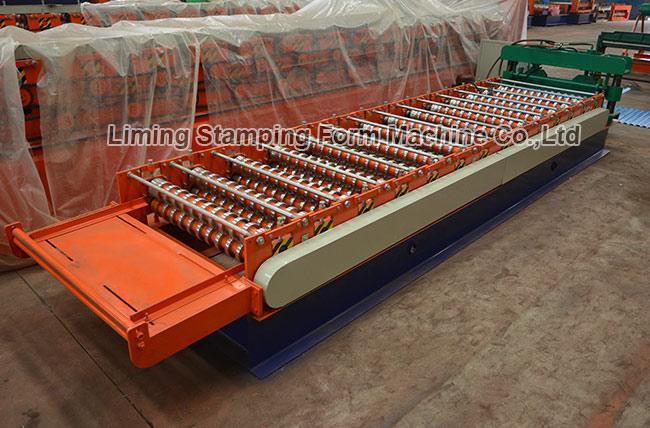

Galvanized Corrugated Metal Roofing Sheet Roll Forming Machine
Although the earliest corrugated metal roofs used wrought iron, the corrugated metal roofs installed today use one of many materials. The galvanized corrugated metal roofing sheet roll forming machine has been carefully designed to ensure enhanced mechanical performance and better aesthetics. Other corrugated metal roofing sheet roll forming machines are simpler and have the advantage of reducing costs.
Galvanized steel is one of the most common materials. Galvanized corrugated metal roofing sheet roll forming machines are usually rolled steel that is cold rolled to provide mechanical strength. Before pressing, the metal should be coated with zinc to prevent the metal plate from rusting.
This means that the galvanized corrugated metal roof panel produced by the galvanized corrugated metal roofing sheet roll forming machine retains its original appearance for longer than almost any other metal roofing material.
Technical parameters of Galvanized Corrugated Metal Roofing Sheet Roll Forming Machine
| 1 | Voltage | (380V 50HZ),or according client require | |
| Power Requirement | Main Motor power | 5.5kw | |
| Cutter power | 3.0kw | ||
| 2 | Forming speed | 15-55m/min | |
| 3 | Forming stations | 16 rows | |
| 4 | Main Frame | 350H beam | |
| 5 | Sidewall thickness | 14mm | |
| 6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |
| 7 | Chains | 1inch chain drive | |
| 8 | Type of cutting | Roll formed and length-set cutting | |
| 9 | Control system | PLC control | |
| 10 | Install dimension(depend on the final design) | 8.3m×1.5m×1.3m | |
| 11 | Total weight (Approx) | 4.0T | |
| 12 | Roller | High grade 45# steel, hard chrome plated | |
| 13 | Feeding system | Guide type | |
| 14 | Cutting blade | Cr12 | |
| 15 | Frequency changer | Delta | |
