U-Shaped Keel Forming Machine For Shopping Mall Ceiling
U-Shaped Keel Forming Machine For Shopping Mall Ceiling
When ceiling decoration is needed in the construction of shopping malls, the decoration workers will use U-shaped keel as the main keel of the ceiling to be matched and assembled with the C-shaped keel. Therefore, a precise U-shaped keel forming machine is required.

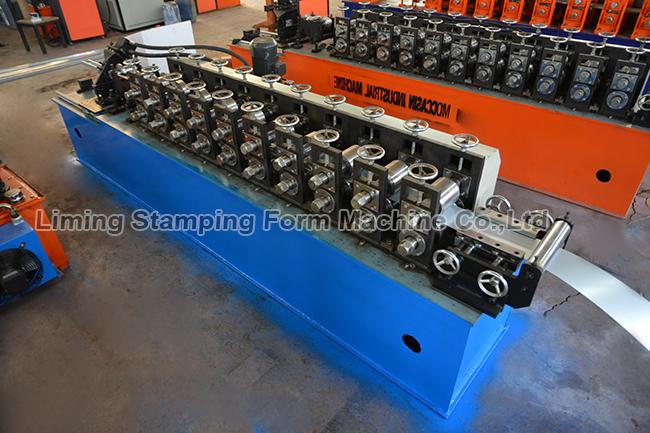

The U-shaped keel forming machine is equipped with 12 sets of support vertical plates and 12 sets of Gr12 forming wheels to ensure that the formed product will not be bent and the size is accurate. At the same time, the U-shaped keel forming machine adopts mold cutting to ensure that the products produced are complete and free of burrs.
The U-shaped keel forming machine is designed with a punching device, which facilitates the installation of the product, thereby helping you to win the market competitiveness and occupy the market advantage faster.
The main parameters of U-Shaped Keel Forming Machine:
| No. | ||
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Production Capacity | 12-14m/min |
| 5 | Cutting blade materi | Cr 12 High Grade Steel |
| 6 | Hydraulic pump power | 3.5kw |
| 7 | Electrical control system | PLC control system |
| 8 | Shaft diameter | 45mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 12-24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 2-4T |
| 16 | The machine size | 7000mm*1500mm*1500mm |
