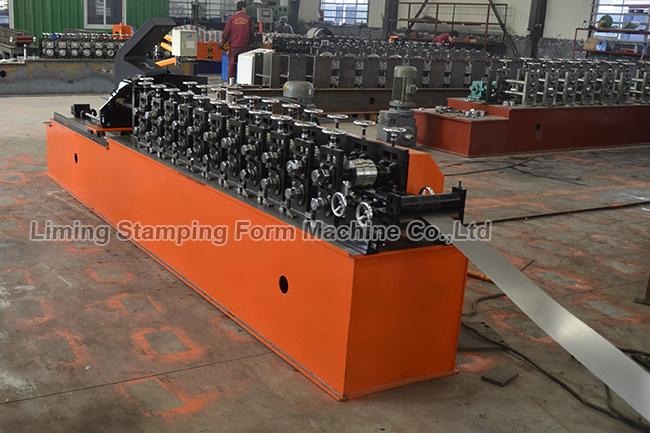

Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
Omega keel is one of the main "materials" for roof decoration. Decoration workers often use Omega as the skeleton of the ceiling. Omega keel is very popular because of its advantages of easy installation, anti-corrosion, and strong load-bearing capacity. So we can provide Omega keel forming machine to help you produce Omega keel.
The Omega keel forming machine integrates various production processes such as uncoiling, feeding, forming, and cutting, and controls the whole machine through the PLC electronic control system, so that only one person can control the entire production process.
In order to improve the production efficiency of the Omega keel forming machine, the Omega keel forming machine adopts a servo twist-off shear, so that the Omega keel forming machine can cut without stopping the machine.
At the same time, the products produced by the Omega keel forming machine have good linearity, convenient and fast installation, no deformation of the cutting cut and no burrs, and are well received by the decoration industry and the engineering industry.
Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
| Article No. | Item Name | Specification |
| 1 | Effective width | As customer' drawing |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 8-12 stations |
| 4 | Shaft Diameter | 55 mm |
| 5 | Productivity | 20-40 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chromewith 0.05mm chrome |
| 8 | Weight | 3.5-5 tons |
| 9 | length | 4.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 3-5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
