3000KG Light Steel Frame Machine For Wall Angle CE Certificate

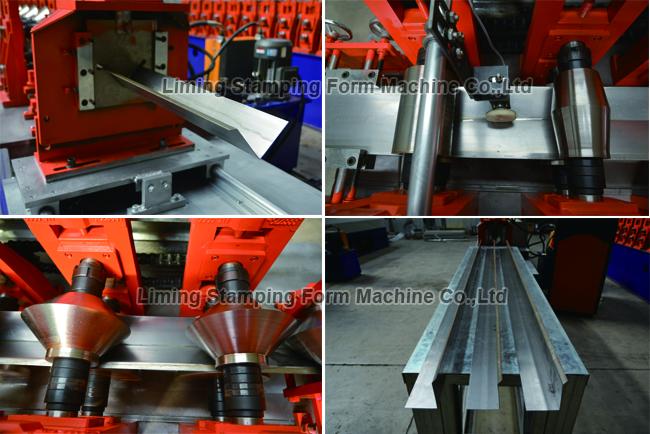

Cheap Light Gauge Steel Keel Wall Angle Frame Making Roll Forming Machine
The cheap light gauge steel keel wall angle frame making roll forming machine has the characteristics of beautiful appearance, good quality, long life, high forming rate, stable forming, low failure rate, and simple installation and operation. Welcome all customers to negotiate.
"cheap light gauge steel keel wall angle frame making roll forming machine " has a 2-year warranty and lifetime maintenance. There are on-site technicians to install and debug and provide technical support.
Our company has been engaged in the production and development of "cheap light gauge steel keel wall angle frame making roll forming machine " for many years.
"cheap light gauge steel keel wall angle frame making roll forming machine " is in the leading position in the industry with its high efficiency, high precision and resistance to mold wear, and can fully meet the needs of major customers.
Our product series include: light steel keel forming machine, integrated wall panel production forming machine, decorative keel forming machine, ceiling keel forming machine, partition keel forming machine and various cold bending forming machines, all machines support customization!
Technical Parameters of Cheap Light Gauge Steel Keel Wall Angle Frame Making Roll Forming Machine
| Roll Forming System | |
| Under Frame | 16mm Carbon Steel seamless welded |
| Memorial Archway | 25mm thickness steel plate |
| Roller Station | 8 Steps + 1 Straighting Rollers |
| Shaft Diameter(Solid) | 40mm-0.01~-0.03(with key-way) |
| Shaft Material(Hard) | High grade 45# steel,heated and quenched,cylindrical grinding |
| Roller Material(Hard) | Cr12,heated and Quenched,polishing |
| Bearing Type | Standard |
| Transmission Gear | Heat treatment |
| Motor Power | 3.0KW (Lichao,Shanghai) |
| Forming Speed | 0-25m/min |
| Hydraulic Cutting Device | |
| Main Structure | Welded Structural Steel |
| Hydraulic Cutting | Full-auto Non-stop |
| Pump Power | 3.0 KW |
| Cutting Mold | Cr12Moywith HRC58-60 |
| Voltage Standard | 380V /3Phases/50Hz |
| Electrical Control System | |
| PLC System | Touch-win |
| Length Controller | Omron,Japan |
| HIM Operation | English Touch Screen |
| Servo Controller | Touch-win |
| Other Components | CHNT,China |
