GI GL Photovoltaic Bracket Roll Forming Line For 0.3mm
Fully automatic roll punching and high-speed photovoltaic bracket forming machine

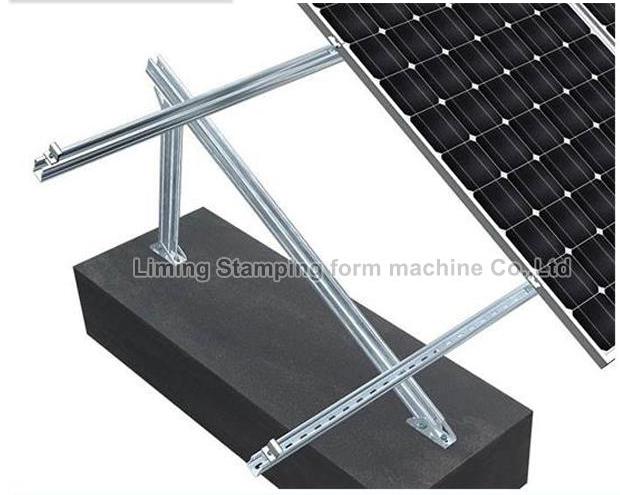

The global energy crisis has promoted the rapid development of the new energy industry, and solar energy is the most important basic energy source among all kinds of renewable energy; therefore, as a solar power technology that converts solar radiation energy into electrical energy, the photovoltaic stent forming machine is more It is rapid development.
The entire production line of the photovoltaic support forming machine integrates production equipment with multiple technologies such as leveling, feeding/punching, forming, and cutting. The whole machine is controlled by a PLC programming system, and only one person can complete the entire production process, thereby helping You save a lot of labor costs.
The photovoltaic support molding machine is also equipped with a roll punching method. The punching speed can be adjusted according to the production speed of the molding host, which greatly improves the production efficiency of the photovoltaic support molding machine, thereby helping you to produce photovoltaic support products with high efficiency.
Main Parameters Of Fully automatic roll punching and high-speed photovoltaic bracket forming machine
| Coil Material | Type | Galvanized Steel Sheet |
| Thick | 0.3-1.0mm | |
| Uncoiler (manual/automatic) | Weight Capacity | 8T |
| Inner Diameter | 460-520mm | |
| Outside Diameter | 1400mm | |
| Coil width | Max 600mm | |
| Feeding and | Pinch rollers | one pair, up and down |
| straightening device | Straightening rollers | up three, down four |
| Diameter of rollers | 75mm | |
| Roll Former | Frame type | single station |
| Forming Roller stand | about 14 Groups | |
| Shaft material | High grade 45# steel, | |
| Heated and quenched HRC55-60° | ||
| Shaft diameter | 50mm | |
| Roller material | GCr15 | |
| Drive Type | By gear | |
| Forming Speed | 40-45m/Min | |
| Motor | 5.5KW reducer with | |
| requency control | ||
| Cutting | Type | After-cutting, hydraulic |
| Hydraulic cutter | Material of mould | Cr15 |
| With quenching treatment55-60° | ||
| Cutting tolerance | 10M+/- 2.0 mm | |
| Feature | no distort, no wasting , high safe factor.(main motor stop cutting) |
|
| PLC cabinet | PLC | XINJIE |
| Length Controller | Encoder | |
| Operation | Touch Screen | |
| Transducer | Delta | |
| Hydraulic station | Hydraulic station power | 4 KW*2 |
| Hydraulic pressure | 15 Mpa | |
| Runout Table | Non-power type | 2 pcs |
