Solar Photovoltaic Manufacturing 1.2mm Metal Roll Former 20m/Min
Price:
Negotiation
MOQ:
1
Delivery Time:
45 work days
Brand:
LIMING
Product Description

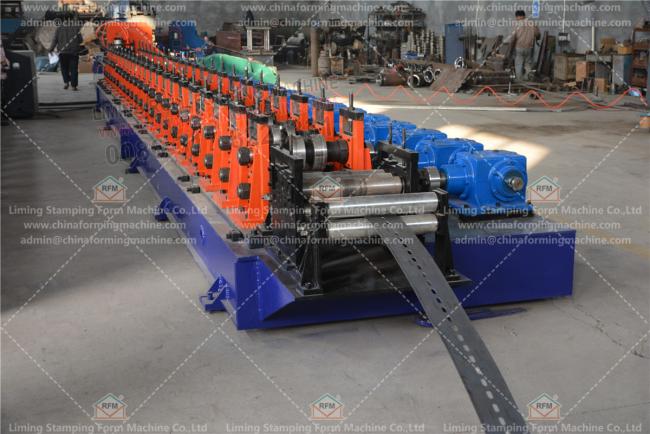

Easy to install Automatic roll forming line for solar structure

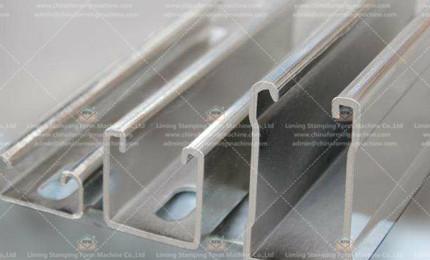

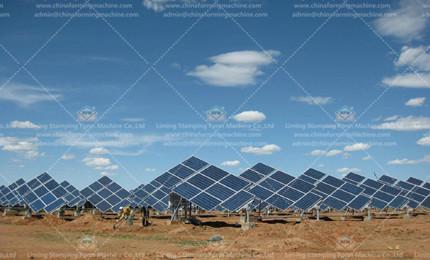

In the photovoltaic power generation technology, in order to meet the installation requirements of large-size battery modules, and can be used in areas with high wind speeds, a solar mounting system is designed. The solar mounting system does not need to be welded on site. It can be completely installed in the bolt holes. We can provide a full-automatic roll forming line for the solar structure of the solar stent
| Machinable Material : | A) Hot-rolled and cold rolled steel | Thickness(MM): 1-2.5 |
| B) Hot-dip galvanized sheet | ||
| C) Pre-Galvanized Steel | ||
| D) Mill(Plain/Black) Steel | ||
| E) Aluminum | ||
| F) Stainless Steel | ||
| Yield strength : | 250 – 350 Mpa | |
| Tensil stress : | G250 Mpa-G350 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |

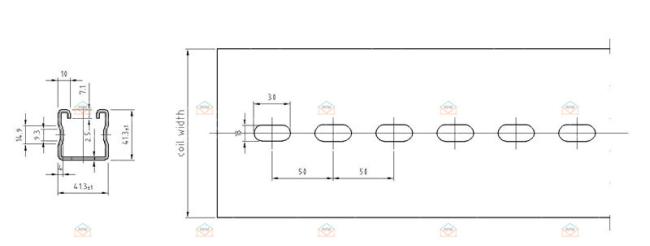

| Forming station : | 28 | * According to your profile drawings |
| Main machine motor brand : | Siemens | * Siemens (Optional) |
| Driving system : | Gearbox drive | |
| Machine structure: | Forged Iron station | |
| Forming speed : | 15-20 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | Steel #45 | * GCr 15 (Optional) |
| Cutting system : | Flying hydraulic cut | * Flying saw cut (Optional) |
| Frequency changer brand : | Yaskawa | * Siemens (Optional) |
| PLC brand : | Siemens | |
| Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
| Machine color : | Crimson | * Or according to your requirment |
