Ppgi Exterior 0.5mm Wall Panel Machines 30m/Min

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: 50work days
Brand: LIMING
Product Description



A New Generation Of Exterior Wall Steel Plate And Tile Making Machinery 30m/Min

Exterior wall steel plate tile making machinery is equipment for producing exterior wall decorative panels. Exterior wall hanging panels are a construction method that hangs the panels on the outside of the wall through dry hanging and other construction methods to achieve decoration or heat preservation effects. At the same time, it must have the basic properties of anti-corrosion, anti-aging, non-radiation, fire prevention, insect resistance, etc. We can provide exterior wall steel plate and tile making machinery

Main parameters of A New Generation Of Exterior Wall Steel Plate And Tile Making Machinery 30m/Min

1 Can Formed Material PPGI,GI,AI
2 Equipment operation Automatic
3 Voltage 380Vor220V
4 Thickness of sheet (mm) 0.5-1.2mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 6000mmx1500mmx1600mm
8 Speed 10-30m/min
9 Diameter of shaft 60mm
10 Weight of the Machine 3000KGS
11 Material of rollers C45 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 7kw
15 Power of hydraulic system 3kw
16 Power of main molding core 4kw

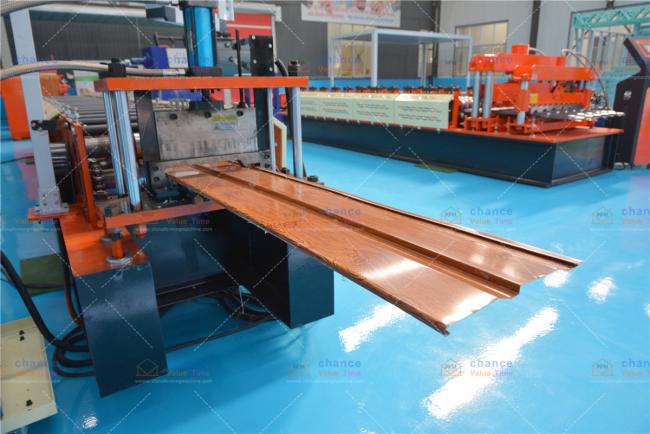

The exterior wall steel plate and tile making machinery adopts digital PLC computer programming control, automatic length setting, automatic cutting, and touch screen operation, simple and convenient

, The outer wall hanging board produced by the outer wall steel plate and tile machine has a neat section and a standard plate shape. It can be sold or installed directly, which can help you quickly open the market.

The exterior wall steel plate tile making machine has reasonable design, convenient operation and large motor power. At the same time, the exterior wall steel plate tile making machine is also equipped with an industrial control frequency conversion system, which makes the machine run more smoothly and greatly improves the production speed, which can help you Increase productivity
