880lbs Capacity 8 X 2 Caster Wheel , Wearable Aluminum Caster Wheels

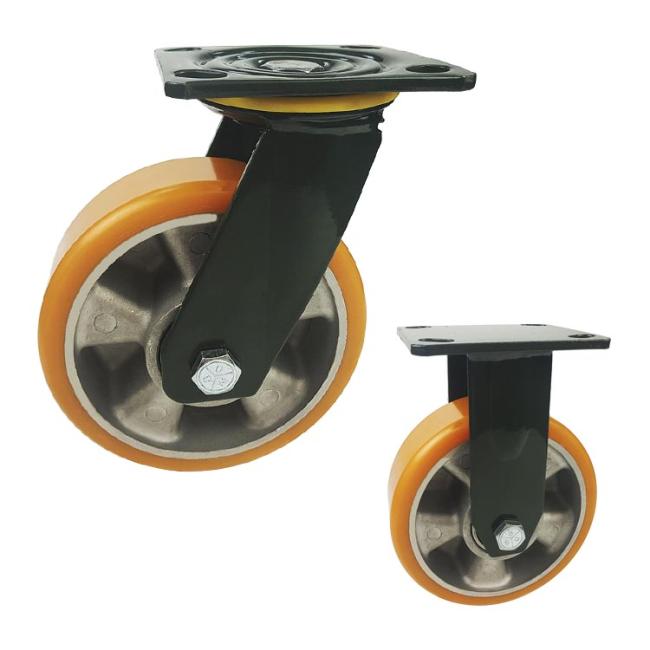

200mm 880lbs top plate green painted fork aluminium core pu heavy duty casters with double brake
Description:
This is a kind of heavy duty aluminium core pu/polyurethane top plate swivel caster wheels.
They are stronger than normal cast iron core pu casters.
Can be use in heavy industrial trolleys etc.
Wheel diameter range from 4 to 8 inch.
Green painted fork.
Dust seal.
Double ball bearing.
Product Specifications:
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Distance MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I004C100APUP | 100x50 | 142 | 115x100 | 85x72 | 20x13 | Double Ball Bearing | 280 |
| I004C125APUP | 125x50 | 166 | 115x100 | 85x72 | 20x13 | 320 | |
| I004C150APUP | 150x50 | 195 | 115x100 | 85x72 | 20x13 | 360 | |
| I004C200APUP | 200x50 | 240 | 115x100 | 85x72 | 20x13 | 400 |
About Us:
FAQ:
Q: Are you manufacture or trading company?
A: We produce caster wheels.
Q: Where are you?
A: Our factory located in Yangjiang, Guangdong.
Q: What is your delivery time?
A: Generally, within 20 days. It also depends on the order quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Of cause.
Q: Can i customize my own logo/brand? If i want to make a new type of caster, is that possible?
A: Yes, print your brand logo on the caster packing is fine, so as the logo on the caster bracket , even produce your new model of caster.
