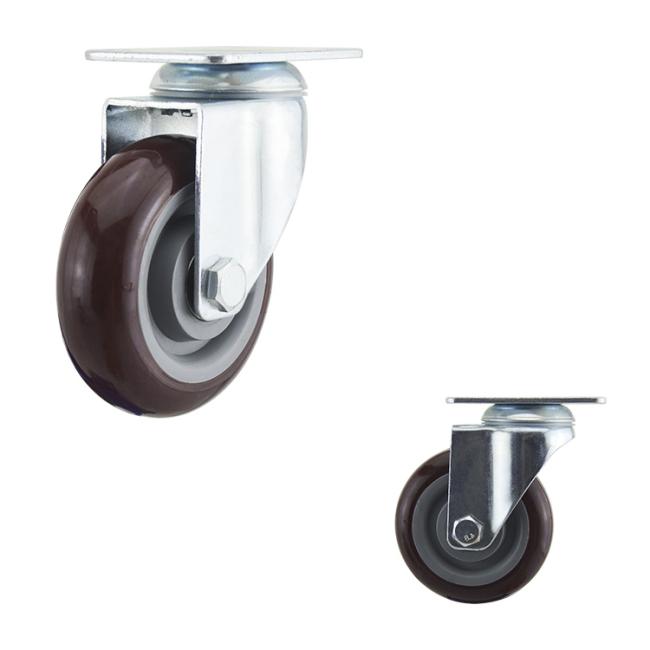

4 Inch One Direction Medium Duty Casters Zinc Plated Surface
WBD 4" One Direction Rigid Jujube Polyuethane Medium Duty Casters Customize
Description:
| Medium duty caster | 100mm |
| Fixed |
110kg capacity |
| Dark red | Press steel bracket |
| Polyuethane | Ball bearing |
| Tread on wheel | For Transport Trolley, Service Carts etc |
Product Specifications:
Top Plate Fixed Type
Model Number: I002B100PUPF
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg

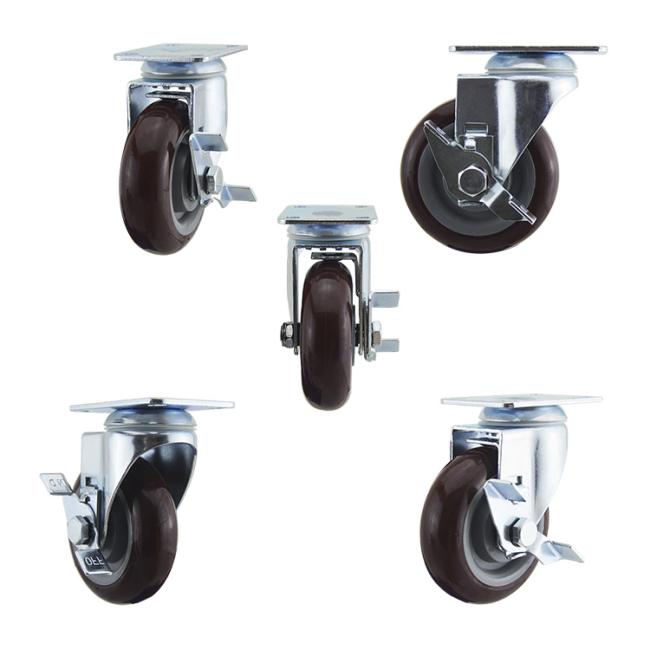

Top Plate Swivel SIde Brake Type
Model Number: I002B100PUPB1
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg
Top Plate Swivel Type
Model Number: I002B100PUP
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg
Other optional type: Total brake, threaded stem(swivel, swivel with side brake, swivel with total brake)
Note: Wheel color, material, mounting type, thickness of bracket, color of forks etc, we can do the personality customize.
Package:
Normal package: Carton boxs
Other package: As your request
Packaging printing: As your request
