6" Swivel Plate Heavy Duty Casters Side Lock Rubber Wheel 230kg Capacity
6" Swivel Plate Side Lock Rubber Wheel 230kg Capacity Heavy Duty Casters Wholesale
Description:
| Plate Casters | Cast Iron Core |
| Heavy Duty Casters | Roller Casters |
| Swivel Side Locking Casters | Screws Mounting Type Casters |
| Black Color | Tread On Wheel |
| Rubber Tread | 6 inch |
Heavy duty side brake iron core rubber top plate swivel caster wheels can rotate 360 degree smoothly. You can stop the wheel from running by step on the side brake pedal easily. If you need to unlock them, just do it opposite way.
Product Specifications:

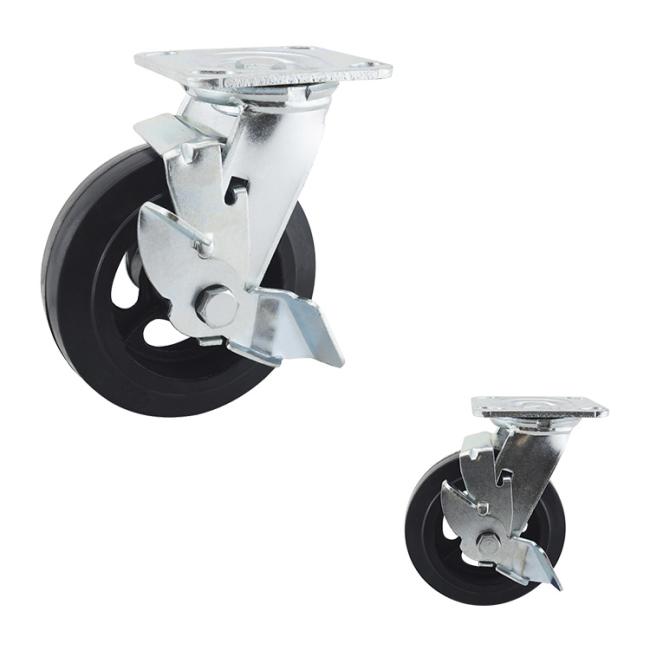

Swivel side lock heavy duty rubber casters
| Model Number | Wheel Diameter/Width MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Distance MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I004A150CRPB1 | 150x50 | 190 | 115x100 | 85x72 | 20x13 | Roller | 230 |

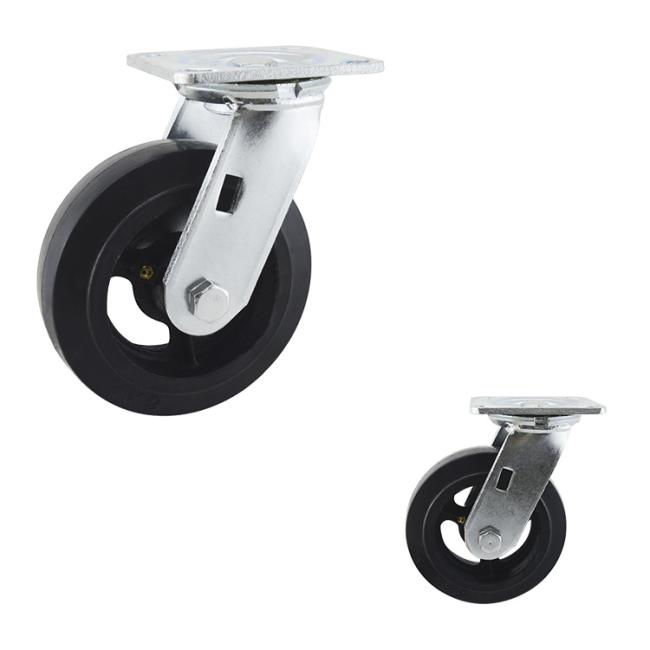

Swivel type heavy duty rubber casters
| Model Number | Wheel Diameter/Width MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Distance MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I004A150CRP | 150x50 | 190 | 115x100 | 85x72 | 20x13 | Roller | 230 |

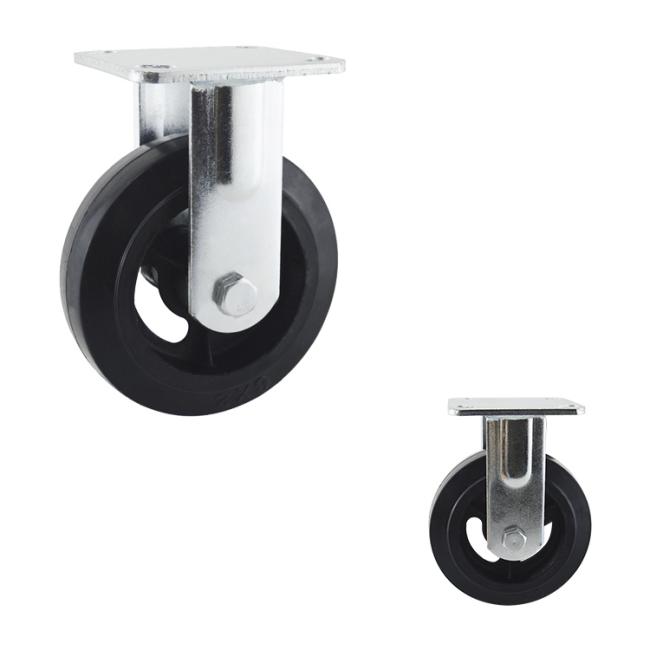

Fixed type heavy duty rubber casters
| Model Number | Wheel Diameter/Width MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Distance MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I004A150CRPF | 150x50 | 190 | 115x100 | 85x72 | 20x13 | Roller | 230 |
Note: There are total brake type available too
