Logo Customizable 3 Inch PU Swivel Bolt Hole Caster Wheels For Desks
Logo Customizable 3Inch PU Wheels Light Duty Swivel Bolt Hole Red Caster Wheels For Desks
Description:

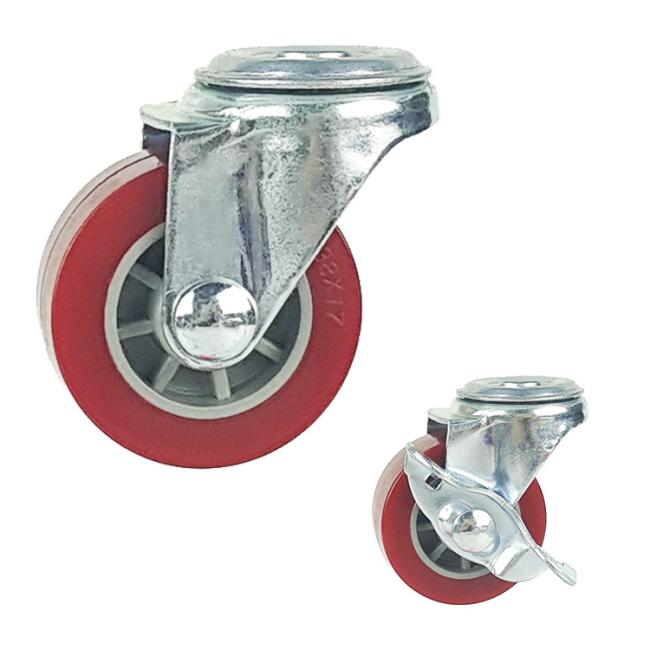

Zinc plated pressed steel bracket 3 inch swivel head red pu light duty caster wheel.
Mounting type bolt hole, other type are also available, depend on you.
Wheel diameter 75mm.
Loaded capacity 50 kg.
Made of PU, PP and steel.
No bearing caster wheel.
Bolt hole type casters are easy to install.
Apply to many applications like shelves, food carts, desks etc.
Product Specifications:
Bolt Hole Type Swivel PU Casters
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C050PUD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065PUD | 65x25 | 84 | 8 | 40 | |
| I001C075PPD | 75x25 | 93 | 10 | 50 |
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PUP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030PUP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 | |
| I001C040PUP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 | |
| I001C050PUP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 | |
| I001C065PUP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 | |
| I001C075PUP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PUPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030PUPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 | |
| I001C040PUPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 | |
| I001C050PUPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 | |
| I001C065PUPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 | |
| I001C075PUPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Threaded Stem Size MM |
Bearing Type | Loaded Capacity KG |
| I001C040PUT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050PUT | 50x20.3 | 65 | 8x15 | 30 | |
| I001C065PUT | 65x25 | 84 | 10x25 | 40 | |
| I001C075PUT | 75x25 | 93 | 10x25 | 50 |
Bulk Casters Of Bolt Hole Swivel PU Wheels
Services:
FAQ:
Q: What is your delivery time?
A: Normally within 20 days. It also depends on the order quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
Q: The pu material caster is a bit expensive, do you have an economical style?
A: Yes, the light duty pvc casters is suitable, almost the similar performance.
Q: If i buy a container of this light duty pu casters, can you help me to arrange the shipment?
A: Yes, my friend. We have helped a lot of our customer to do that.
Q: I own a big hardware shop in our country, do you have any other casters?
A: Yes, you can check here or just contact us for catalog.
