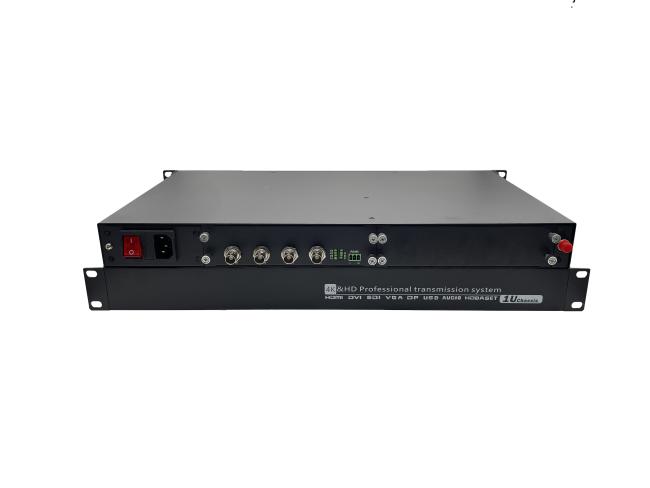

4-Ch 3G-SDI To Fiber Converter With Separate Audio Port
Price:
100-250.00USD/set
MOQ:
1 set
Delivery Time:
2-3 days
Brand:
VINCAN
Product Description
Description:
19inch 1U Rack, Built with industrial-grade durability, it offers EMI protection and wide-temperature operation,
supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable,
high-fidelity video distribution for broadcast, surveillance, and digital signage applications.
Specifications for 4-Ch 3G-SDI To Fiber Converter With Separate Audio Port:
| 3G-SDI | |
|---|---|
| Number of Channels: | 4-Channel 3G-SDI |
| Connector: | 75 Ohm BNC (Gold Center Pin) |
| Data Rate: | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select |
| Standards: | SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI) |
| Max Resolution: | 1080p @ 60Hz |
| • Audio | |
| Number of Channels: | 2-Channel Duplex Balanced Audio |
| Connector: | XLR Male/Female |
| Audio input/output Level: | +4dBu nominal |
| Audio Type: | Balanced, Line Level or Mic Level |
| Audio in/output impedance: | 600Ω |
| Frequency Response: | 20Hz ~ 20KHz |
| Signal-to-Noise Ratio(SNR): | > 90 dB |
| Distortion: | <0.05% |
| • Ethernet | |
| Number of Channels: | 2-Channel Gigabit Ethernet |
| Data Rate: | 10/100/1000 Mbps |
| Connector: | RJ-45, Auto MDI/MDI-X |
| • Optical | |
| Optical Connector: | ST, FC or LC Optical connector optional |
| Wavelengths: | 1310 ~ 1610nm |
| Fiber Type: | Single-Mode, Single-Fiber, 20km |
| Rate: | 3Gbps |
| Tx Output Power: | >-6dB |
| Receiver Sensitivity: | >-14dB |
| • Electrical & Mechanical | |
| Power Adapter: | AC100V~240V (Built-in) |
| Power Consumption: | <30W |
| 19inch 1U Rack: | 445mm x 220mm x 44.5mm |
| Shipping Weight: | 6.0kg (include TX & RX) |
| • Environmental | |
| Operating Temperature: | -20°C ~+75°C |
| Storage Temperature: | -40°C~+85°C |
| Relative Humidity: | 0%~95% (non-condensing) |
| MTBF: | >100,000 hours |
