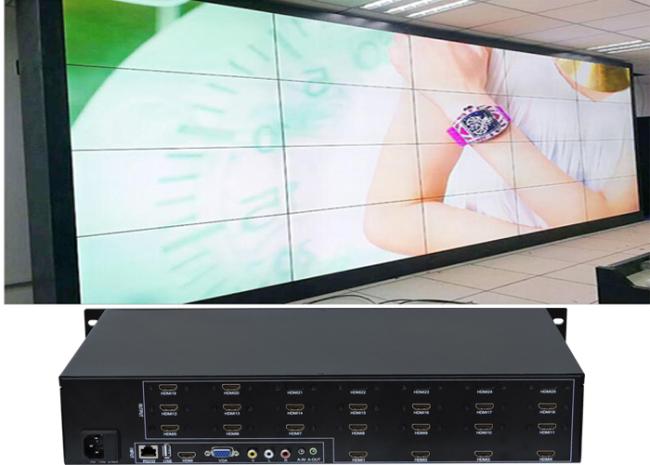

HD 20 Screens Narrow Bezel LCD HDMI Video TV Wall Screens Controller 4x4 2x2 3x3
HD 20 Screens Narrow Bezel LCD HDMI Video TV Wall Screens Controller 4x4 2x2 3x3
1. Product introduction:
The HD 20 Screens LCD HDMI Video TV Wall Controller 4x4 2x2 is the perfect solution for entertainment
and Digital signage application in retail outlets,clubs,trade shows,control centers, building lobbies, and
other similar venues. It accepts multiple input video sources, such as HDCP-compliant HDMI, DVI , VGA
as well as USB disk.
2.Product features:
-
Realize shortcut switch VIDEO,USB,HDMI,VGA;
-
Shortcut switch between joint and unjoint
-
Adjust the wide and high of edge blanking
-
Output volume control
-
Adjust brightness,contrast ratio,color saturation
-
Setting the Speed of USB ,next song ,program choose
-
The other function of multi-screen processor
3.Technical parameters of the HD 20 Screens Narrow Bezel LCD HDMI Video TV Wall Screens
Controller 4x4 2x2 3x3 :
|
Name |
Specification |
|
Input signal |
|
|
VGA |
HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
|
HDMI |
HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
|
Video |
Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5 |
|
USB |
Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
|
Output signal |
|
|
HDMI interface |
4 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
|
Audio |
3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously |
|
others |
|
|
Control mode |
RS232,Remote ,case key |
|
Power supply |
AC: 100 to 240 V |
|
Joint pattern |
Quad standard joint,single machine customize joint of 2 to 25 |
|
Power |
20W |
|
Case size |
|
|
Dimensions(1U) |
1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
|
Weight(1U) |
2.5KG |
| Product name | HD 20 Screens LCD HDMI Video TV Wall Controller 4x4 2x2 |
System Topology of the HD 20 Screens Narrow Bezel LCD HDMI Video TV Wall Screens Controller 4x4
2x2 3x3:
