8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
2-3 days
Brand:
VINCAN
Product Description
Description for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack:
19inch 1U Rack, Built with industrial-grade durability, it offers EMI protection and wide-temperature operation,
supporting single/multi-mode fiber for short/long-distance transmission. This versatile solution ensures reliable,
high-fidelity video distribution for broadcast, surveillance, and digital signage applications.
Specification for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack:
| • 3G-SDI | |
|---|---|
| Number of Channels: | 8-Channel 3G-SDI |
| Connector: | 75 Ohm BNC (Gold Center Pin) |
| Data Rate: | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps - Auto Select |
| Standards: | SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI) |
| Max Resolution: | 1080p @ 60Hz |
| • Audio | |
| Number of Channels: | 2-Channel Duplex Balanced Audio |
| Connector: | XLR Male/Female |
| Audio input/output Level: | +4dBu nominal |
| Audio Type: | Balanced, Line Level or Mic Level |
| Audio in/output impedance: | 600Ω |
| Frequency Response: | 20Hz ~ 20KHz |
| Signal-to-Noise Ratio(SNR): | > 90 dB |

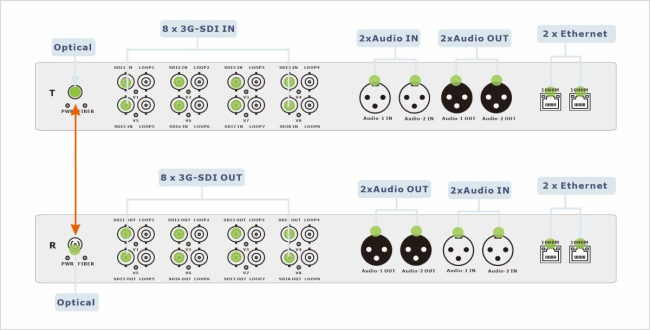

The picture for 8-Channel 3G-SDI Fiber Optic Extender With 19inch 1U Rack :
