Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic
Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic
Description:
The WL-209 Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic is part of Winllink ‘s fiber optic transmission family. Simple connections for DVI and Fiber provide a cleaner wiring solution. With one Multi-mode OM3 fiber optic, the WL-209 can go up to 984 ft (300 m), 1920 * 1200 @ 60 Hz & 1080 p, 4KX2K.
Features:
1. Single multi-mode OM3 fiber optic for transmission;
2. Transmitter with EDID learning;
3. The highest video bandwidth: 1.65 Gbps;
4. The highest resolution:1920×1200 @60Hz, 4KX2K.
5. The longest transmission distance: 300m;
6. Small, concise, directly connect to DVI interfaces of source and display devices.
7.Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic
Specs:
|
Video |
|
| DVI Compliance | DVI-D |
| Distance | 984ft [300m] |
| Max Resolution | 1920*1200@60Hz,4KX2K |
| Connectors | |
| TX Connectors | (1) DVI in, (1)LC |
| RX Connectors | (1) DVI out, (1) LC |
| Mechanical | |
| Dimensions | 65 x 39 x 15mm(L/W/H) |
| Weight | 0.18lbs [80g] |
| Power | |
| Power Supply | 5V 1A DC |
| Environmental | |
| Operation Temperature | 32~131°F [0~55°C] |
| Storage Temperature | -4~185°F [-20~85°C] |
| Relative Humidity | 5~95% RH [no condensation] |
| Product name | Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic |

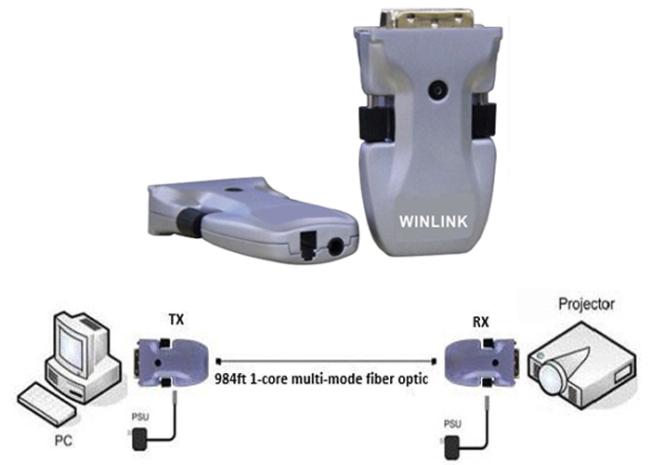

Application of the Single Core 1920×1200 984ft 300m HD Video Extender DVI Fiber Optic:
