Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled
Wire Diameter 8mm Motor 11kw Reinforcing Mesh Welding Machine
Introduction of Reinforcing Mesh Welding Machine:
Reinforcing mesh welding machine adopts CNC synchronous control technology, welding time and sub-control welding time are composed of PLC digital programming system, input panel for touch screen or keyboard two, more intelligent operation, rationalization. The steel mesh welder adopts one pressing and multiple welding. The biggest advantage of the control is that more than 30 different sizes of mesh holes can appear between warp and weft on the same mesh surface. A new type of highly efficient water-cooled welding transformer is adopted to expand the range of welding wire diameters. (The automatic welder has a high degree of automation, reduces a lot of manual operation, can be efficient, automatic welding mesh.)
Features of Reinfrocing Mesh Welding Machine:
1. The welding mesh machine each group of transformers are controlled by a separate microcomputer, a pressure multiple welding, the biggest advantage of the control is: can appear on the same mesh between the latitude and latitude of more than 30 different sizes of holes.
2. The welding electrode head of the welding mesh machine is made of high quality chromium pick copper material, long service life, reduce the production cost.
3. The welding wire feeding method: the diameter wire using artificial wire, automatic wire feeding function. Accurate position, saving welding waiting time.
4. Feeding mode of the welding mesh machine: automatic feeding of the weft wire hopper, accurate feeding position.
5. The reinforcing mesh welding machine drawing mode: the servo motor reciprocating mesh, pneumatic tightening weft wire, to ensure the accurate position of the mesh.
Technical Parameters of Reinforcing Mesh Welding Machine:
| Model | DX-GWCD-2500 | Wire diameter | 4.0-8.0mm |
| Longitudinal wire type | Pre-cut | Longitudinal wire space | 50-300mm |
| Weft wire type | Pre-cut | Weft wire space | 50-300mm |
| Welding transformer capacity | 160KVA*9PCS | Number of welding electrode | 51PCS |
| Floor space | 20*8m | Labor cost | 2 persons |
| Power consumption | 8-10 kw/h | Machine weight | 6500kg |
| Machine dimension | 8500*3200*2300mm | Pulling mesh method | By servo motor |
| Power supply | 120KVA | Machine color | As per request |
| Welding speed | 40-75 times per min | Welding pressure | Spring |
| Welding method | By silicon controlled | Control system | By PLC control |
Applications of Reinforcing Mesh Welding Machine:
The reinfrocing mesh widely can be used in coal mine mesh support, highway guardrail mesh, fence mesh, construction mesh, high-rise building mesh.

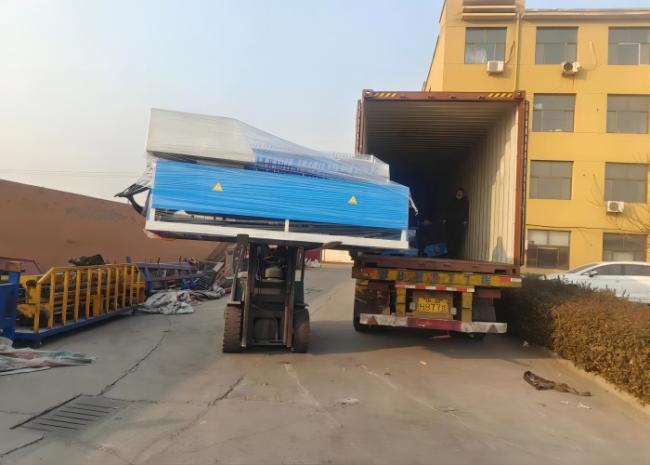

Loading Photos of Reinforcing Mesh Welding Machine:

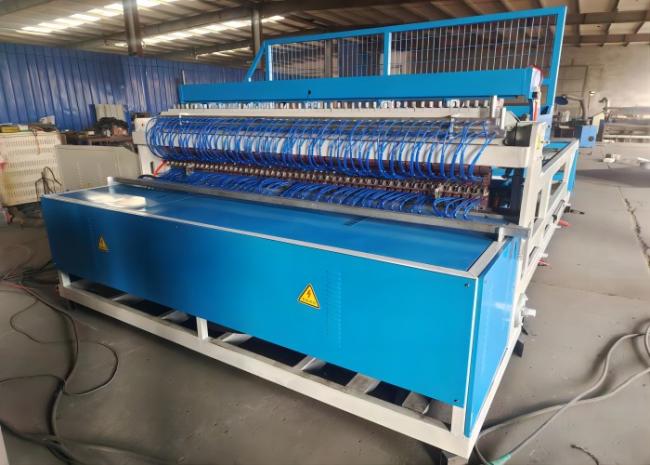

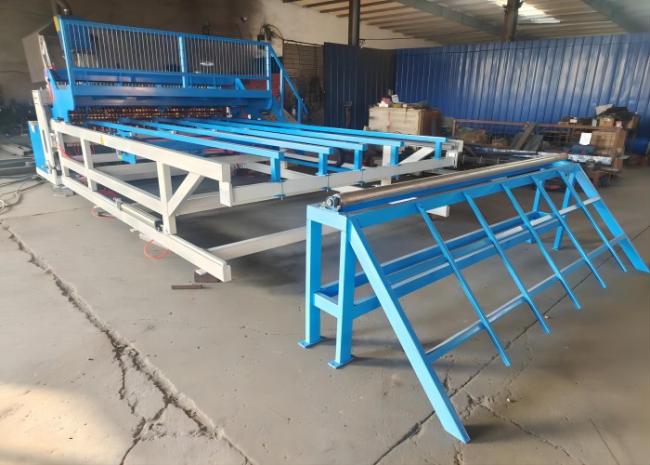

Photos of Reinforcing Mesh Welding Machine:
