Deformed Steel Bar 4-8mm Light Duty Reinforcing Mesh Welding Machine 10kw/H
Deformed Steel Bar 4-8mm Light Duty Reinforcing Mesh Welding Machine
Introduction of Reinforcing Mesh Welding Machine:
The reinforcing mesh welding machine is a new kind of welding equipment with higher degree of automation successfully researched and developed by our company on the basis of absorbing advanced resistance welding technology at home and abroad in recent years, combined with domestic and foreign market demand. The equipment has passed a number of national patent certification, using synchronous control technology, welding time and controlled welding are composed of PLC digital programming system. Input panel for touch screen or keyboard two, compared with the previous welding machine more intelligent, rationalization, has a higher cost performance.
Features of Reinforcing Mesh Welding Machine:
1. The main frame is welded by thick steel plate and section steel, which makes the main structure firm and compact.
2. The structure of the weft wire feeding mechanism is novel, so that the weft wire feeding technology accurately solves the problem of no leakage or double leakage.
3. The pulling mesh method of server motor can solve the problem that the same mesh has different mesh sizes. The mesh drawing control system uses PLC to control the screen Chinese display.
4. Welding using a new water cooling welding transformer.
5. Welding power electronic control system adopts synchronous control technology, PLC control, Chinese display, control accuracy is stable.
6. The reinforcing mesh welding machine feeding way: artificial wire stepping motor automatic feeding way to save welding waiting time, fast feeding speed, accurate position.
7. The mesh drawing trolley moves the net in reciprocating, which saves the workshop space for the production of large length mesh and improves the dimensional accuracy of mesh.
8. Welding speed is affected by horizontal line spacing, welding wire diameter, horizontal line length, longitudinal line length, longitudinal line number, welding net weight, carbon content of welding raw materials, power supply transformer capacity, power supply cable and other factors.
Technical Parameters of Reinforcing Mesh Welding Machine:
| Model | DX-GWCD-2000 | DX-GWCD-2500 |
| Width of mesh | Max.2000mm | Max.2500mm |
| Longitudinal wire space | 50-250mm | 50-250mm |
| Cross wire space | 50-300mm | 50-300mm |
| Longitudinal wire type | Pre-cut | Pre-cut |
| Cross wire type | Pre-cut | Pre-cut |
| Length of mesh | 3-12m | 3-12m |
| Main motor | 11kw | 11kw |
| Machine weight | 4500kg | 5800kg |
| Machine dimension | 7500*2700*1600mm | 7500*3200*1600mm |
| Cross wire feeding | By step motor | By step motor |
| Pulling mesh device | By servo motor | By servo motor |
| Method of welding | Silicon controlled | Silicon controlled |
| Welding speed | 45-70 times per min | 45-70 times per min |
| Floor space | 20*5m | 20*6m |
Applications of Reinforcing Mesh Welding Machine:
It can be used for high-rise building steel bridge mesh, highway mesh, building steel mesh, floor pouring top mesh.

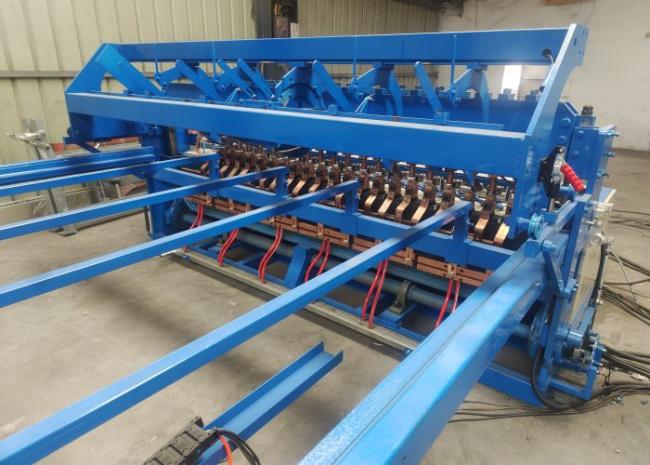

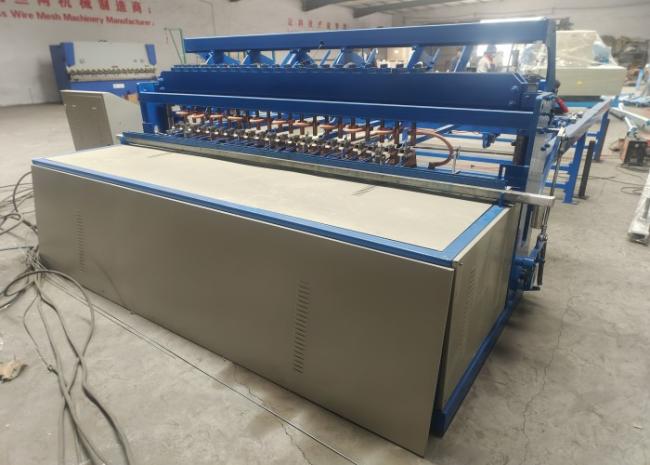

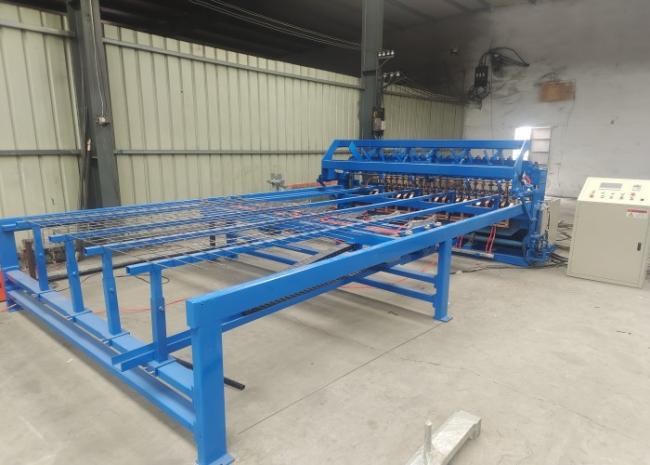

Photos of Reinforcing Mesh Welding Machine:
