Mitsubishi PLC Width 1200mm Recycle Pull Mesh Steel Grating Welding Machine

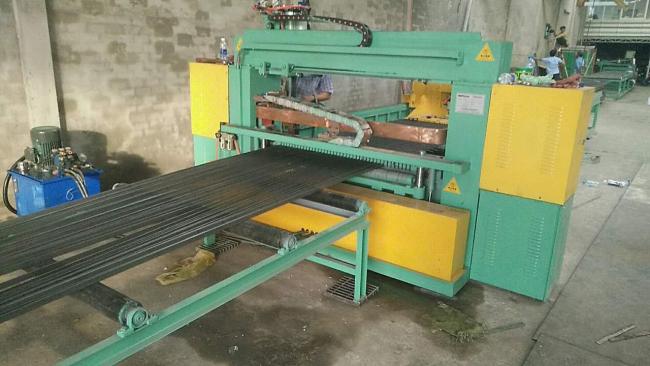

Steel Grating Welding Machine Introduction:

Steel Grating Welding Machine is a concentration of electric, hydraulic, resistance welding, machinery, etc., as one of the large welding equipment.With compact structure, welding strong function, high degree of automation, product quality, convenient operation and maintenance, strong productivity, etc.Intermediate frequency welder frequency is 1000 hz, large output current density.The secondary loop output impedance is small, welding current, low dissipation electrodes directly connected to the rectifier circuit, greatly saves the energy required during welding.

Steel Grating Welding Machine Features:

1. The automatic steel grating welding machine adopts Japan Mitsubishi PLC program and touch screen to control.

2. The automatic steel grating welding machine adopts hydraulic device to control welding electrode; it can weld 3 points per time when flat bar thickness is 2.5-3mm,weld 2 points per time when flat bar thickness is 3-6mm. when flat bar thickness is 6-10mm.weld 1 point per time.

3. The mesh pulling system adopts servo motor, more stable, high precision.

4. The automatic steel grating welding machine adopts specially designed mold to fix flat bars. The flat bar space is fixed, flat bar thickness and width can be adjusted within range on one mold.

5. The welding transformers are water cooling type.

6. Feeding way: the flat bar should be put by the worker; the twist bar should be straightened.

7. The steel grating welding machine can weld twisted cross bar range 5*5mm,6*6mm,7*7mm. 8*8mm.

Steel Grating Welding Machine Technical Parameters:

Steel Grating Welding Machine Applications:

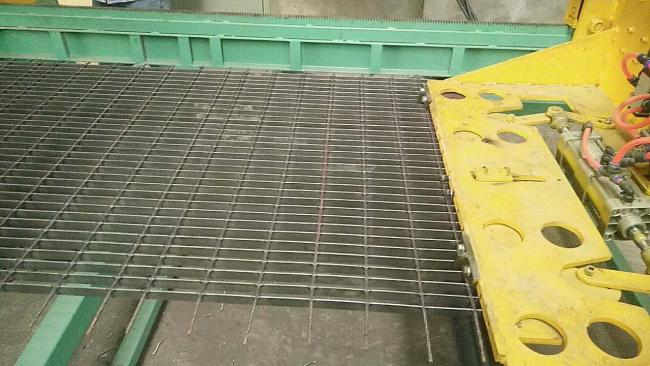

Steel plate and grid board, widely used in petroleum chemical industry, power plant, water plant, sewage treatment works, municipal engineering, environmental sanitation projects in the areas of platform, walkway, pier, trench cover, manhole covers, ladders, fences, guardrail, etc.We have a wide variety of steel grid products, which can be designed and manufactured by customers according to the different environment, different bearing capacity, span, shape and color, and cost cost.All products are purchased from raw materials, manufactured and finished products inspected until the market is put into the market. All products are strictly regulated in accordance with the advanced specifications, so that the steel grid can reach quality and quality.
