PLC Park Double 2500mm Fence Mesh Welding Machine
Mesh Width 2500mm Park Fence 3D Double Wire Welded Fence Mesh Production Line
3D Double Wire Welded Fence Mesh Production Line Introduction:
The 3D Double Wire Welded Fence Mesh Production Line adopt air cylinder to control the welding pressure. The 3D Double Wire Welded Fence Mesh Production Line use 30mm thickness iron plate to make the body structure. Make sure the machine working stable. The machine can produce wire diameter 4-8mm, Mainly wire diameter is 656mm and 868mm. This two wire diameters are widely used in the machine. Mesh size 200*50mm. Length of mesh max 3000mm. The finished product 3D double wire fence mesh panel is widely used in park fence,road fence.Mountain fence.The welding point is very strong and beautiful.
3D Double Wire Welded Fence Mesh Production Line Features:
1. The 3D Double Wire Welded Fence Mesh Production Line adopt Mitsubishi PLC, Mitsubishi servo drivers, Schneider relays etc.
2. The line wires and cross wires should be pre-straightened and pre-cut, then put into wire into the dies by the storage hopper automatically

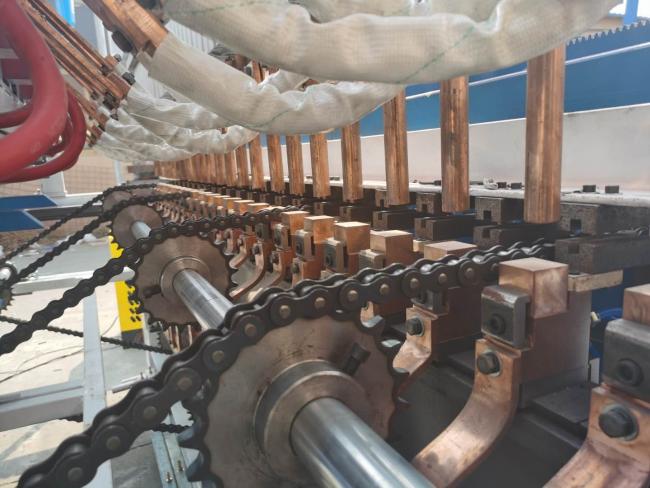

3. There are two storage hopper, One is for the line wire storage hopper, another is for cross wire storage hopper. Firstly. Put the line wire into the storage hopper. The storage hopper drop the line wire into the die automatically. Then put the cross wire into the storgae hopper. The cross wire storage hopper drop the wire into the dies automatically. Finally. the line wire storage hopper drop the line wire to the dies automatically again. The cycle chain will send the line wire and cross wire to the welding machine. The welding machine start to weld one by one. The pulling mesh car to pull out the fence mesh panel automatically.

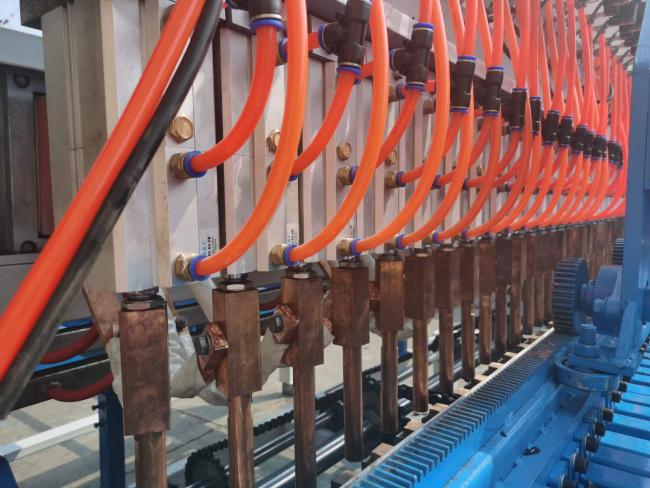

4. The upper welding electrodes and lower welding electrodes are both controlled by SMC air cylinders. The welding pressure are firm and even.
5. The double wire welded fence mesh welding machine suitable for material; galvanized wire, round bar, stainless steel wire.
6. The welding transformer is 160KVA. And the welding transformer is water-cooling system. To ensure the welding transformer working stable and use for long time.Generally speaking. One service life is 3 years.

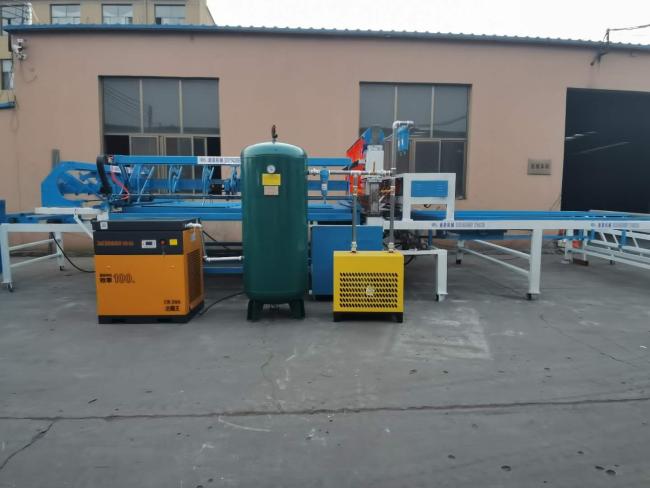

7. The 3D Double Wire Welded Fence Mesh Production Line is equipped with air pump,drying machine,air storage tank.
8. The 3D Double Wire Welded Fence Mesh Production Line need two workers to operate.
3D Double Wire Welded Fence Mesh Production Line Technical Parameters:
| Model | DX-GWC-2000C | DX-GWC-2500C | DX-GWC-3000C |
| Wire diameter | 6+5+6mm,8+6+8mm | 6+5+6mm,8+6+8mm | 6+5+6mm,8+6+8mm |
| Line wire space | 200mm or as your required | 200mm or as your required | 200mm or as your required |
| Cross wire space | 50mm,100mm,150mm | 50mm,100mm,150mm | 50mm,100mm,150mm |
| Mesh width | 2000mm | 2500mm | 3000mm |
| Mesh length | 3000mm | 3000mm | 3000mm |
| Welding electrodes | 11PCS | 14PCS | 16PCS |
| Welding transformer | 160KVA*4PCS | 160KVA*5PCS | 160KVA*8PCS |
| Welding speed | 30 times per min | 30 times per min | 30 times per min |
| Line wire feeding | pre-cut | pre-cut | pre-cut |
| Cross wire feeding | pre-cut | pre-cut | pre-cut |
| Weight | 9T | 11T | 12T |
| Dimension | 14*2.7*2.1m | 14*3.2*2.1m | 14*3.8*2.1m |
| Labor required | Two workers | Two workers | Two workers |
3D Double Wire Welded Fence Mesh Production Line Applications:
3D double wire fence mesh is widely used in the protection and isolation of roads, railways, Bridges, construction sites, airports, prisons and other places.

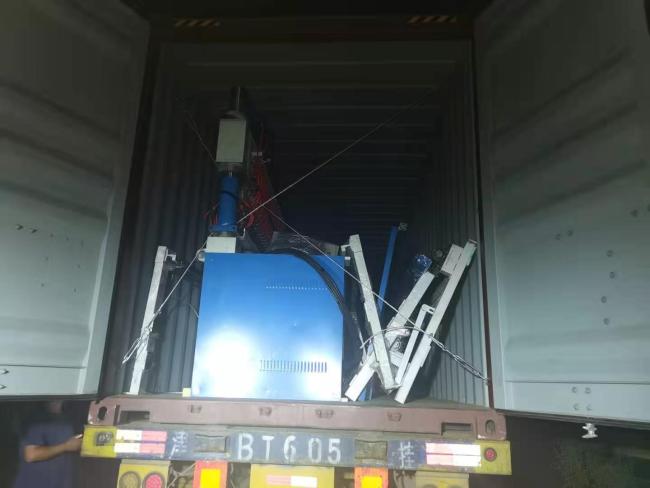

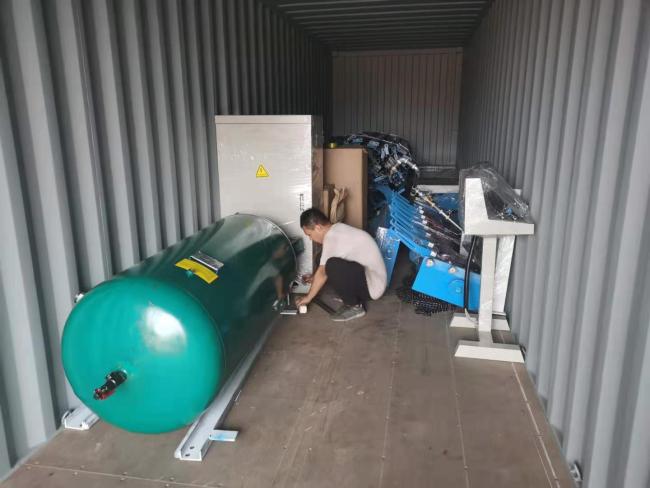

3D Double Wire Welded Fence Mesh Production Line Packing:
3D Double Wire Welded Fence Mesh Production Line Photos:
