Steel Bar Concrete 11kw 4mm Mesh Panel Welding Machine
Steel Bar 4-9mm Mesh Length 6m Concrete Reinforcing Mesh Panel Welding Equipment
Concrete Reinforcing Mesh Panel Welding Equipment Introduction:
The Concrete Reinforcing Mesh Panel Welding Equipment is used for welding reinforce wire mesh panel. Both the line wire and cross wire are feed from pre-cut wire, the controlling system adopts PLC control. The Concrete Reinforcing Mesh Panel Welding Equipment adopts servo motor to pull the mesh panel repeat.
Concrete Reinforcing Mesh Panel Welding Equipment Features:
1. Humanized operation interface.Easy to operate and master. Can set different mesh sizs and mesh length and languages according to your requirement.
2. The welding electricity is controlled by the separate computer. The Concrete Reinforcing Mesh Panel Welding Equipment is equipped with water cooling system for welding transformer and welding electrodes. To make sure that the Concrete Reinforcing Mesh Panel Welding Equipment can work 24 hours smoothly.
3. To adjust the distance between the longitudinal wire by manual through the ruler. The Min distance between the longitudinal wire is 50mm. The max up to 300mm between the welding electrodes. And adjust the cross wire distance by the touch screen in the control cabinet. You could set the welding speed, cross wire distance, mesh length and welding electricity size by the touch screen. Very easy to operate.
4. The Concrete Reinforcing Mesh Panel Welding Equipment has large storage,reduce the frequency of put the cross wrie in the hopper device. The cross wrie hopper device can load 1500 kgs rebar.
5. The Concrete Reinforcing Mesh Panel Welding Equipment use servo motor to pull the mesh, in this case the mesh size is adjustable.
Concrete Reinforcing Mesh Panel Welding Equipment Technical Parameters:
| Model | DX-GWC-1500D | DX-GWC-2000D | DX-GWC-2500D |
| Weight | 4500KGS | 5000KGS | 5500KGS |
| Dimension | 7500*2200*1900mm | 7500*2700*1900mm | 7500*3200*1900mm |
| Rated load duration | ±10% | ±10% | ±10% |
| Rated capacity | 160kva*5pcs | 160kva*7pcs | 160kva*9pcs |
| Current | 100A | 100A | 100A |
| Voltage | 380V 220V 415V 440V | 380V 220V 415V 440V | 380V 220V 415V 440V |
| Thickness of steel bar | 4.0-9.0mm | 4.0-9.0mm | 4.0-9.0mm |
| Welding speed | 50-75 rows per min | 50-75 rows per min | 50-75 rows per min |
| Mesh width | 1500mm | 2000mm | 2500mm |
| Line wire space | 50-200mm | 50-200mm | 50-200mm |
| Cross wire space | 50-300mm | 50-300mm | 50-300mm |
| Welding electrodes | 30PCS | 40PCS | 50PCS |
| Main motor | 5.5kw | 7.5kw | 11kw |
| Welding electrodes material | Red copper durable | Red coper durable | Red copper durable |
| Machine color | As per your required | As per your required | As per your required |
Concrete Reinforcing Mesh Panel Welding Equipment Applications:
The concrete reinforcing mesh panel is widely used as reinforce mesh panel for building, construction; railway wire mesh fence, security fence.

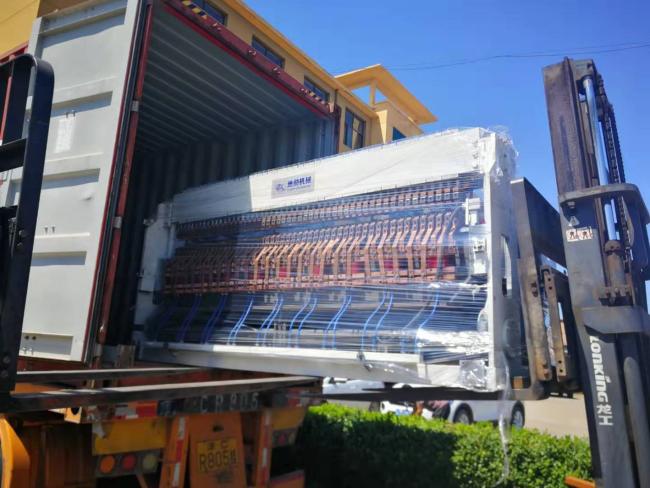

Concrete Reinforcing Mesh Panel Welding Equipment Packing:

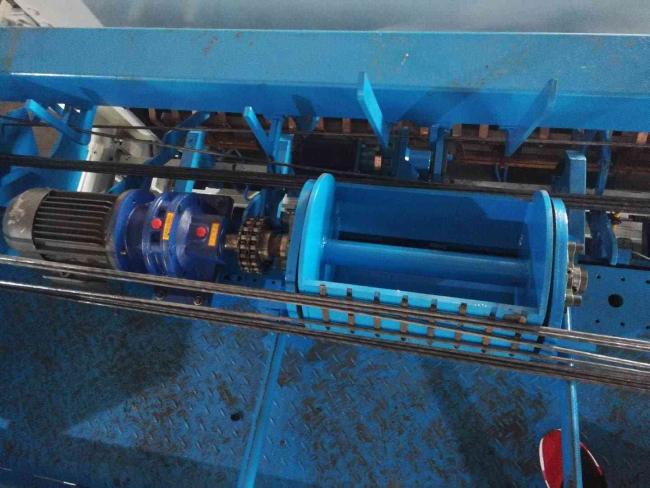

Concrete Reinforcing Mesh Panel Welding Equipment Photos:
