Motor 5.5kw Highway Fence Mesh Welding Machine
Motor 5.5kw Machine Weight 3.5T Used For Highway Fence Mesh Welding Machine
Fence Mesh Welding Machine Introduction:
This fence mesh welding machine is our latest development with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery process automatic control. Equipment to strengthen the damping process, effectively reducing noise.Line wire automatic put by from wire feeding hopper device.
Fence Mesh Welding Machine Features:
1. Welding wire diameter range of the device is 3-6mm, the mesh size is 50-200mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).
2. Welding host, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.
3. Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.
4. Wire alignment and length by integrated design, and the use of PLC control, easy to operate.
5. Wire mesh collection device to take up the space is little, simple, reliable, easy to assemble, easy to handle, suitable for the production flexibility of large customers.
6. System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. By raw material usage optimization system can achieve the ultimate. The greatest degree of raw material savings for customers. Improve production efficiency, provide more efficient, intelligent management.
7. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
Fence Mesh Welding Machine Technical Parameters:
| Model | DX-GWC-2000B | DX-GWC-2500B |
| Line wire feeding | By line wire feeding hopper device | By line wire feeding hopper device |
| Wire diameter | 3.0-6.0mm | 3.0-6.0mm |
| Width of mesh | 1200mm/1500mm/2000mm/2500mm | 1200mm/1500mm/2000mm/2500mm |
| Length of mesh | Max 3000mm | Max 3000mm |
| Line wire space | 50-200mm | 50-200mm |
| Cross wire space | 50-300mm | 50-300mm |
| Welding speed | 50-75 times per min | 50-75 times per min |
| Machine color | As per requirement | As per requirement |
| Main motor power | 5.5kw | 5.5kw |
| Material of welding electrode | CuCrZr | CuCrZr |
| Size of welding electrode | 35*35*18mm | 35*35*18mm |
| Machine weight | 3.5T | 4.5T |
| Power supply | 80KVA | 80KVA |
| Labor requirement | Two workers | Two workers |
Fence Mesh Welding Machine Applications:
Highway,Railway, Airport.

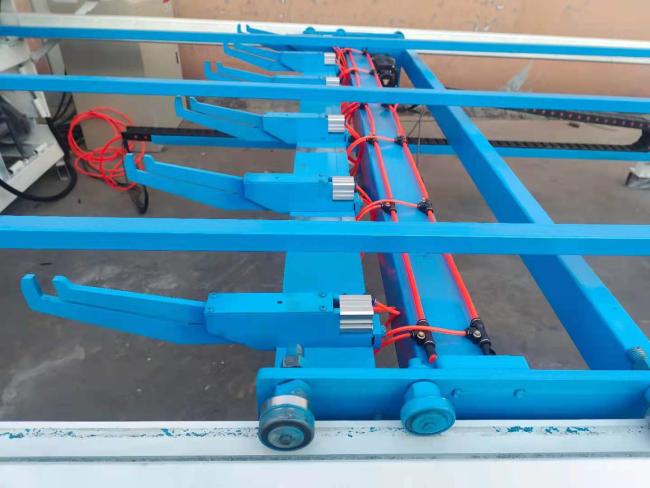

Fence Mesh Welding Machine Photos:
