Poultry 2.0mm Dia Ce Wire Mesh Welding Machines Automatic
Machine Weight 4.7T Poultry Mesh Yellow Wire Mesh Welding Production Line
Wire Mesh Welding Production Line Introduction:
1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.
2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.
3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.
4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.
5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.
6. Fool-style operation, no matter what kind of operation personnel can easily operate it.
7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.
8. The edge cutter is controlled by two big air cylinders on two sides, There is one cutter in the middle of the machine. The cutter will cut the mesh into 2 pieces. The cutting speed can match the welding speed.
9. The servo motor for pulling mesh, cross wire space can be adjusted by PLC.The pulling rack is the J&T brand, more accurate, less noise.
10. The mesh cutting is automatic, max.1m length. After cutting, the mesh can fall down automatically to the mesh stacking car.
Wire Mesh Welding Production Line Technical Parameters:
| Model | DX-GWD-1000 | DX-GWD-1200 | DX-GWD-1500 | ||
| Installed power(kva) | 3*60 | 3*80 | 4*80 | ||
| System coltagte(v) | 380V 50Hz | 380V 50Hz | 380V 50Hz | ||
| Control voltage(v) | 24V | 24V | 24V | ||
| Max.mesh width | 1000 | 1200 | 1500 | ||
| Line wire spacing | ≥20mm steplessly adjustable | ||||
| Cross wire spacing | ≥25mm steplessly adjustable | ||||
| Wire diameter(mm) | 2-3 | 2-3 | 2-3 | ||
| Max.welding capacity | 3+3 | 3+3 | 3+3 | ||
| Max.wlding speed(time/min) | 40-60 | 40-60 | 40-60 | ||
| Max.welding spot nos.(group) | 21 | 24 | 31 | ||
| Pressed air(MPa ) | ≥0.8 | ≥0.8 | ≥0.8 | ||
| Wire feeding method | coil feeding | ||||
| Caterconer accutracy | ≤2 | ≤2 | ≤2 | ||
| Welding material | galvanized wire or cold drawing steel wire | ||||
Wire Mesh Welding Production Line Applications:
The product of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cages.

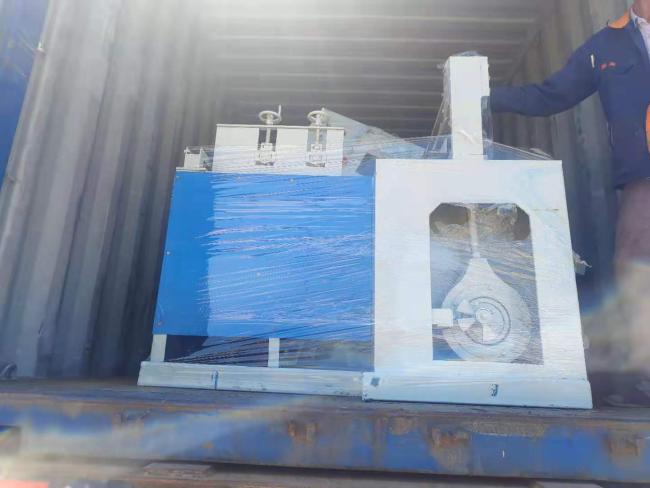

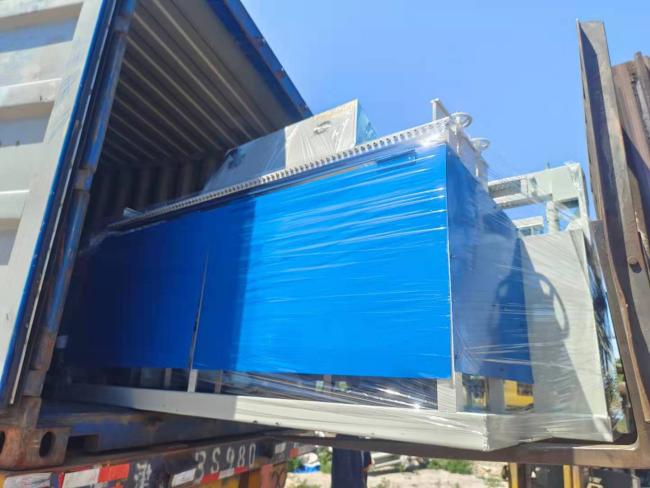

Wire Mesh Welding Production Line Packaging:

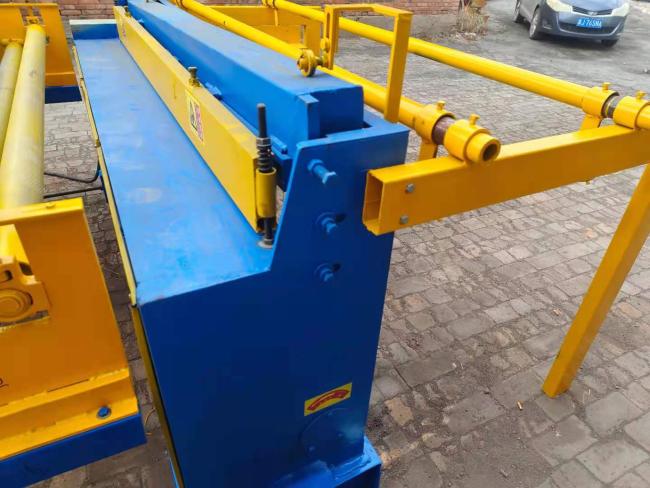

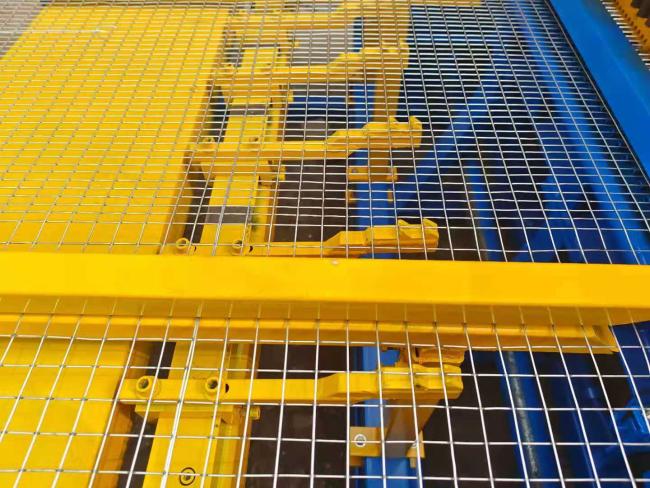

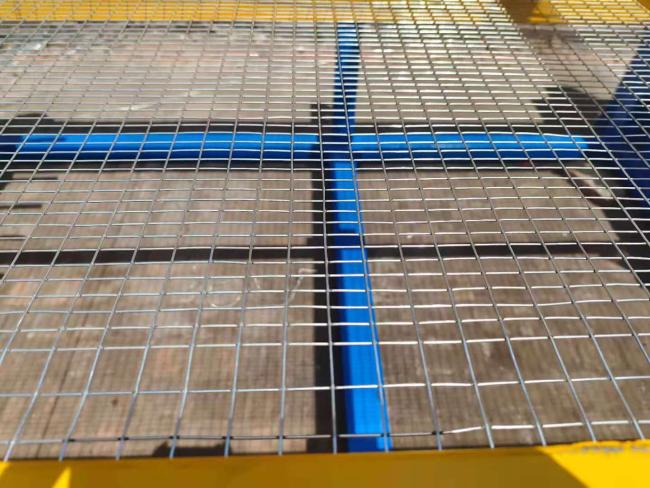

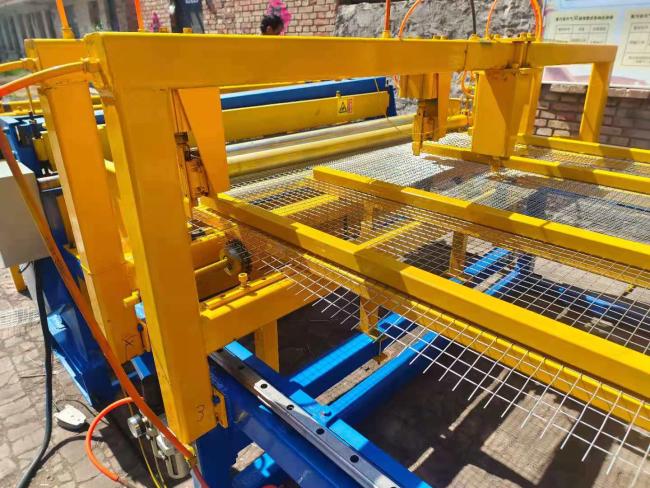

Wire Mesh Welding Production Line Photos:
