Motor 4.0kw Steel 2-4mm Wire Straightening And Cutting Machine
Motor 4.0kw Steel Wire 2-4mm Wire Straightening And Cutting Machine
Wire Straightening And Cutting Machine Introduction:
High speed steel wire straightening and cutting machine. Our company's wire straightening and cutting machines are high technical ones. There are standard models of GTY2-4,GTY-3-8,GTY6-12 which have been lot produced to the market.Is suitable to cold rolling, the hot rolling steel bar straightening and cutting According to preliminary dimension,The efficiency is high (straightening speed up to 130m/min), The precision is
correct(±1mm), The product has three models, separately straightening and cutting 2~4mm,3~8mm,6~12mm steel bar.
Wire Straightening And Cutting Machine Features:
1. High speed straightening and cutting machine with high production, which can match our welding machine working speed.
2. One set high speed machine equal to few sets normal speed machine, save power and labor, also save working space.
3. With PLC+ touch screen control system, easy operation.
4. Famous brand configuration, easily for after-sales maintenance.
5. Our advanced wire pay-off, can bear 600-2000 kg wires, no need for frequent feeding wire coils.
6. Better material for machinery, stronger and longer service life.
Wire Straightening And Cutting Machine Technical Parameters:
| Model | GTY2-4 | GTY3-8 | GTY6-12 |
| Wire diameter | 2-4 mm | 3-8 mm | 5-12 mm (round rod),
6-10 mm (ribbed bar) |
| Cut length | 500-2500 mm | 700-6000 mm | 1000-12000 mm |
| Cut error | ±1 mm | ±1 mm | ±1 mm |
| Speed | 80-100 m/ min | 100-120 m/min | 70-130 m/min |
| Straightening motor | 4 KW | 7.5 KW | 22 KW |
| Cutting motor | 1.5 KW | 1.5 KW | 7.5 KW |
| Overall dimension | 7.2*0.8*1 m | 9×0.6×1.2m | 30×3×2m |
| Weight | 1100 kgs | 1200Kgs | 5500 Kgs |
Wire Straightening And Cutting Machine Applications:
The wire straightening machine has the characteristics of reasonable structure, convenient operation, safety and reliability, and is suitable for chicken coop, rabbit cage, construction mesh, all kinds of welding wire, shule plate wire insertion truncation and irregular mesh wire straightening.

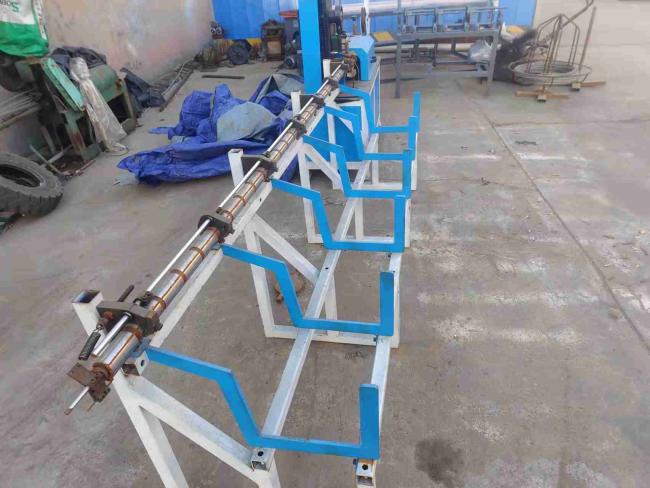

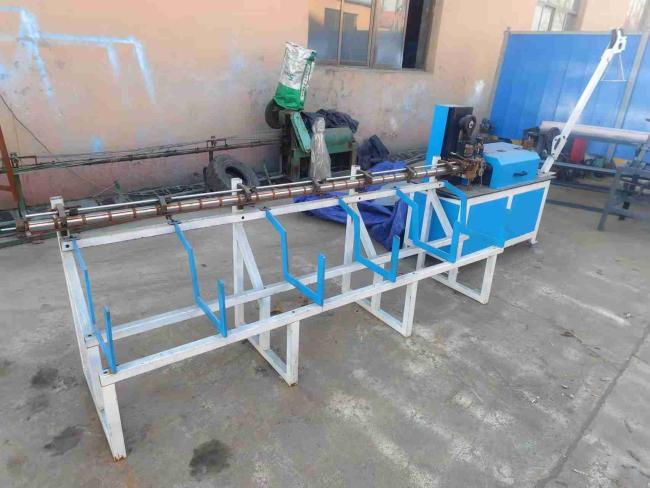

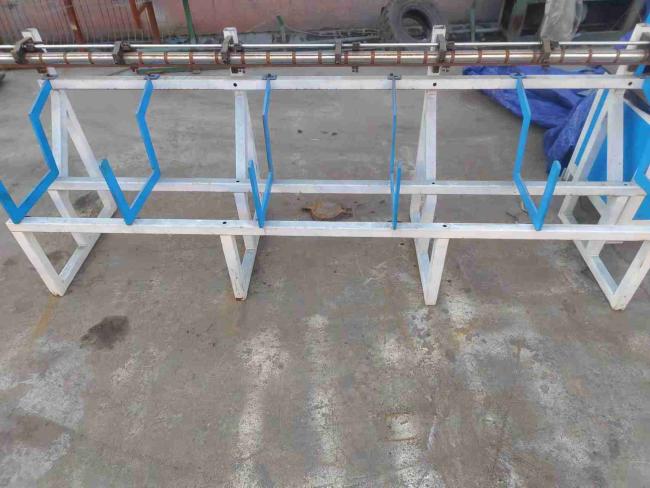

Wire Straightening And Cutting Machine Photos:
