Inlet Wire 6.5mm Plc Steel Wire Drawing Machine Outlet Wire 2.8mm Motor 15kw
Inlet Wire 6.5mm Outlet Wire 2.8mm Motor 15KW Wire Drawing Machine
Wire Drawing Machine Introduction:
The pulley type wire drawing machine is a non-sliding dry continuous wire drawing machine capable of accumulating lines. During the drawing process, the wire and the roll surface in the circumferential direction of the reel do not slide relative to each other in the circumferential direction of the reel, and the surface wear amount of the two is relatively It is small, and when a certain reel in the middle temporarily stops, the reel behind it can still work for a certain period of time depending on the respective line amount. The wire drawing machine has the advantages of simple structure, convenient operation and maintenance, low manufacturing cost.
Wire Drawing Machine Features:
1. The wire drawing machine is equipped with frequency inverter and high speed drawing.It is mainly used for drawing thin wire diameter.The finished black annealing wire is used for construction wire,binding wire and galvanized wire.
2. The drawing capstan insert alloy process, long service life.
3. Harden the gear of reducer to increase the service life of reducer.
4. Add water cooling mold boxes. Prolong the service life of the drawing moulds.

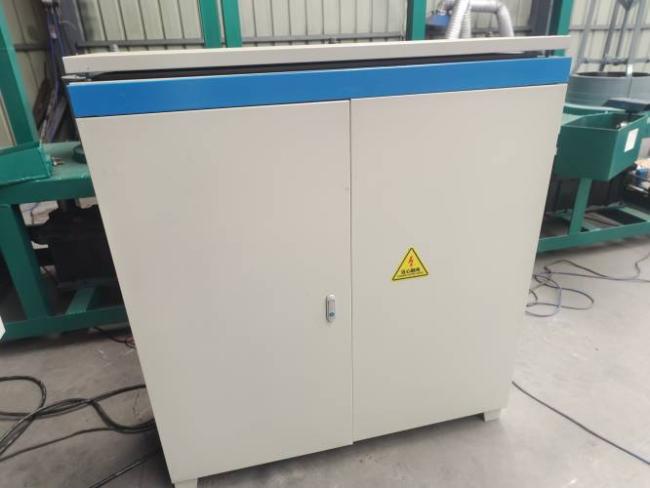

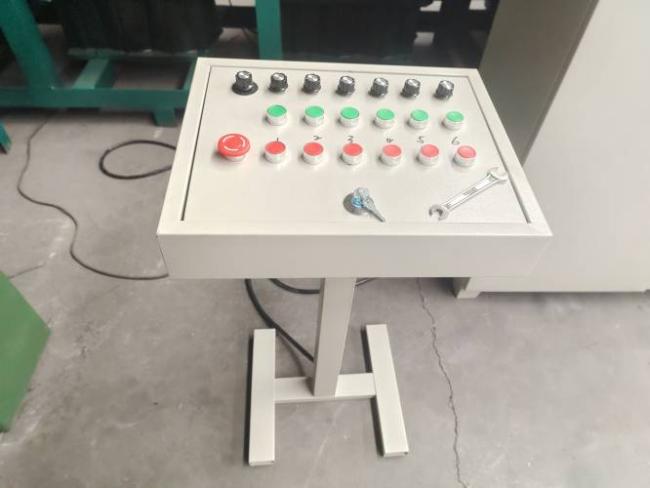

5. Added frequency converter and operation desk, adjustable production speed. Increase capacity.
6. Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
7. Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.
Including accessories:

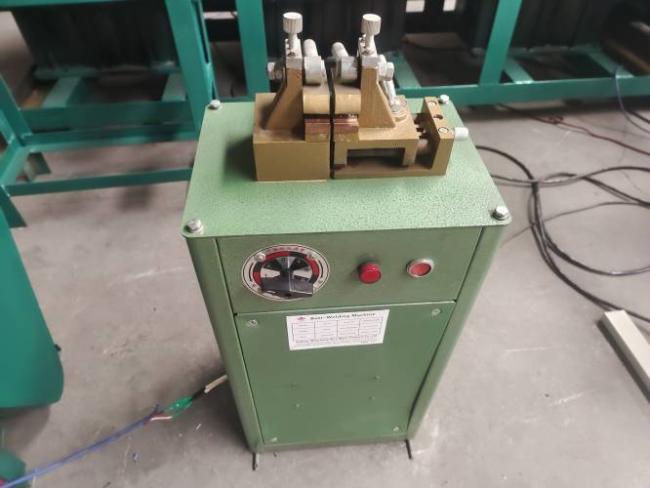

Butt welder 1 set

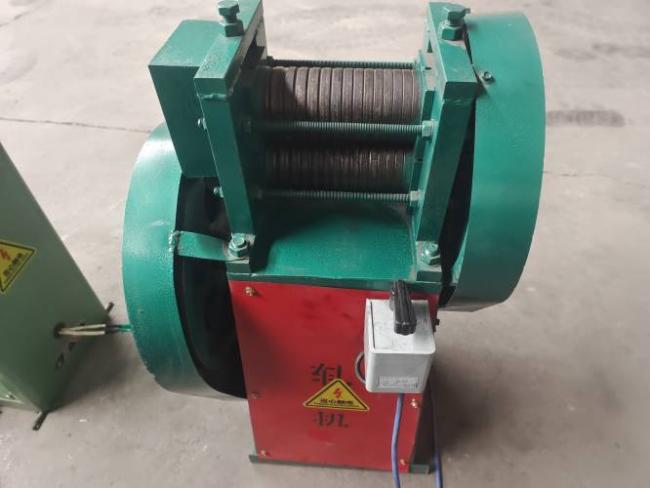

Pointing machine 1 set
Wire unloading device 1 pcs
Wire drawing powder 2bags(80kgs)
Drawing wire moulds:6pcs(tungsten steel materail ,100% new)
Wire Drawing Machine Technical Parameters:
| Model | DXLS-01 | DXLS-02 | DXLS-03 | DXLS-04 | DXLS-05 | DXLS-06 |
| Inlet wire diameter | 8mm,6.5mm | 8mm,6.5mm | 8mm,6.5mm | 8mm,6.5mm | 8mm,6.5mm | 8mm,6.5mm |
| Outlet wire diameter | 7.2-5.7mm | 6.6-5.0mm | 6.0-4.2mm | 5.5-3.6mm | 5.0-3.3mm | 4.6-2.8mm |
| Output kg per hour | 1400 | 1300 | 1100 | 1000 | 750 | 600 |
| Motor power | 15*1+1.5 | 15*2+1.5 | 15*3+1.5 | 15*4+1.5 |
15*5+1.5 |
15*6+1.5 |
| Machine weight | 850KG | 1700KG | 2600KG | 3500KG | 4300KG | 5200KG |
| Production speed | 130-150m/min | 130-150m/min | 130-150m/min | 130-150m/min |
130-150m/min |
130-150m/min |
| Machine dimension | 1.4*1.3*2.1m | 2.6*1.3*2.1m | 3.5*1.3*2.1m | 4.6*1.3*2.1m | 5.7*1.3*2.1m | 6.8*1.3*2.1m |
| Manpower | 1 person | 1 person | 1 person | 1 person | 1 person | 1 person |
Wire Drawing Machine Applications:
This wire drawing machine is used to produce common low carbon steel wires,they are used into constuction fields,or weld all kinds of construction meshes,fence meshes,cage meshes,nail wires or other fields.

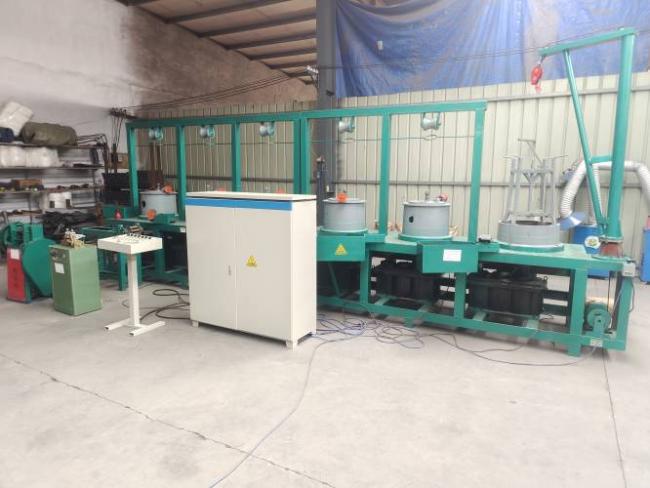

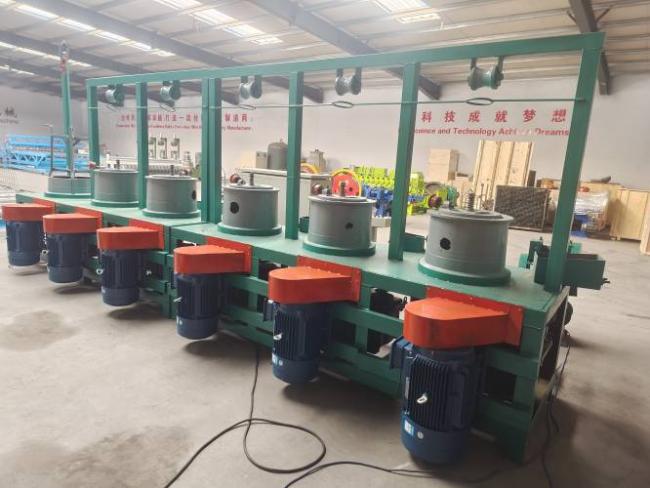

Wire Drawing Machine Photos:
