Motor 4kw 380V Wire Straightening And Cutting Machine For Ribbed Steel Bar
Cut Wire Motor 4kw Ribbed Steel Bar Straightening And Cutting Machine
Ribbed Steel Bar Straightening And Cutting Machine Introduction:
This ribbed steel bar straightening and cutting machine is used for straightening and straightening the cutting of steel and steel bars of the building with cold rolling, the failure rate of the equipment is low, and the traction speed is high,This machine is low consumption, no damage of rib, low noise, vibration, and is equipped with safety device, automatic counting parking device, has high production efficiency, safe and reliable work, equipment and other significant characteristics of low failure rate, simple product maintenance.
Ribbed Steel Bar Straightening And Cutting Machine Features:
Ribbed Steel Bar Straightening And Cutting Machine Technical Parameters:
| Model | DX-BY4-8 |
| Steel wire diameter | 4-8mm |
| Cut length | 3m |
| Straightening wire motor | 11kw |
| Cutting wire motor | 4kw |
| Straightening speed | 130m per min |
| Cutting speed | 120m per min |
| Machine weight | 1500kg |
| Machine dimension | 5400*1000*1300mm |
| Manpower | 1 person |
| Required floor space | 10m*3m |
| Number of straightening roll | 4 pcs |
Ribbed Steel Bar Straightening And Cutting Machine Applications:
It can be widely used in the production of daily necessities, hardware products, crafts and other industries. The steel straightening and cutting machine is mainly used for straightening and cutting cold drawn steel wire and other non-ferrous metal wire.

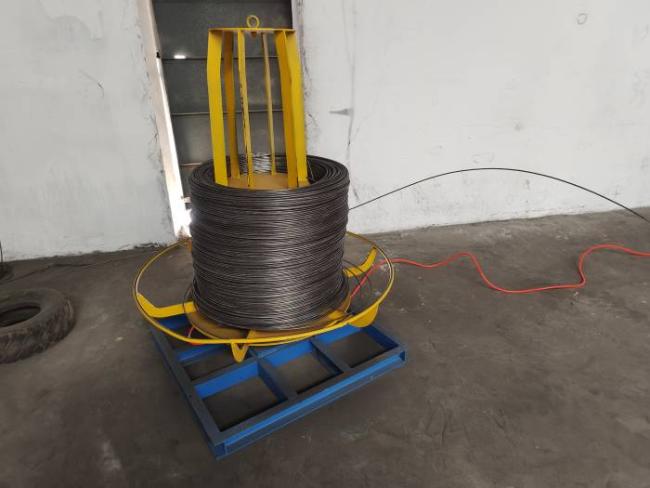

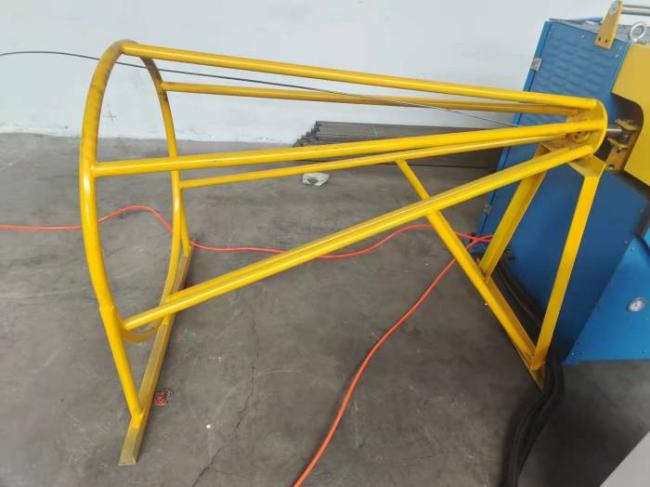

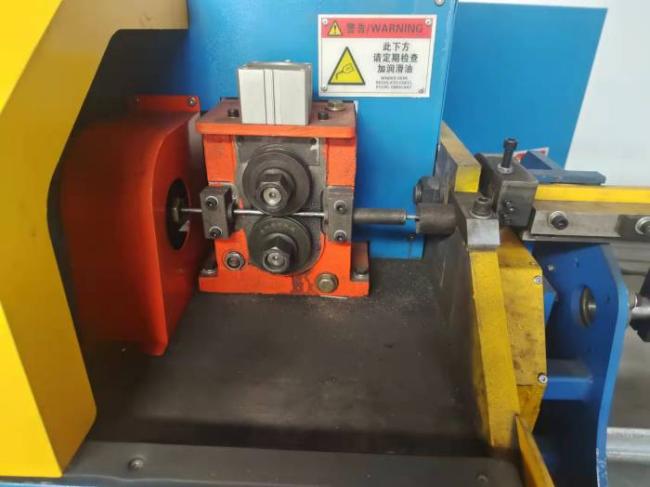

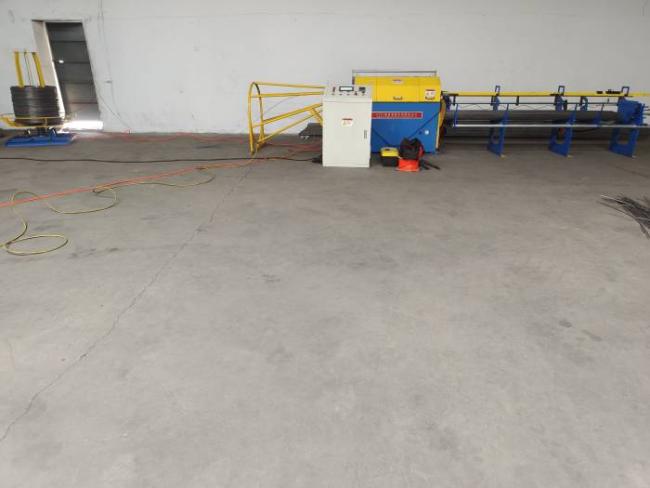

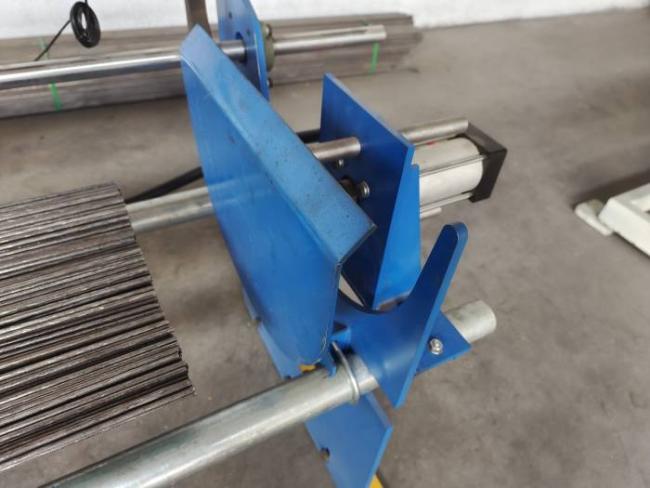

Photos of Ribbed Steel Bar Straightening And Cutting Machine:
