Bright Annealing Extruded Titanium Tubing Astm B338 Standard 2-1220mm

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 5-8 work days

Brand: GNEE

Product Description

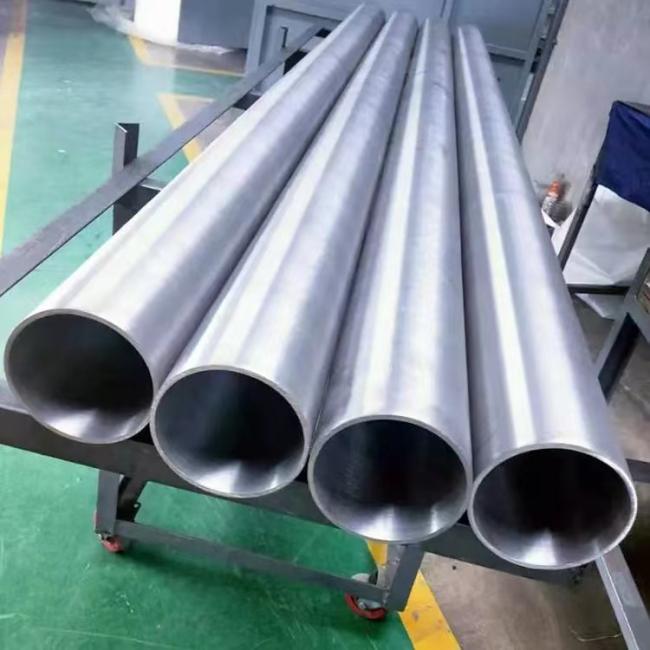

Bright Annealing Tube Extruded Titanium Tubing Astm B338 Standard

Prcossing:

Titanium sponge→melt to ingot(control the content of chemical composition according

to the Standard and customized)→forging(forged billet)→scalping→tube billet(made by

extrusion)→rolling(get semi-finished tube)→annealing( vacuum annealing furnace)→

straightening→tailor→pickling(nitric acid solution)→finished tube→testing(dimension

and mechanical property)→packing→shipping

Description	Titanium Tube / Titanium Pipe
Production Standard	ASTM B337-98 ASTM B338-98 GB/T 3624-2008 GB/T 3625-2007 GOCT
Grades/Class	ASTM Gr.1 Gr.2 Gr.3 Gr.4 Gr.5 Gr.7 Gr.9 Gr.11 Gr.23 GB TA0 TA1 TA2 TA3 TA4 TC4 TA9 TC2 TA9-1 TC4-ELI BT1-00 BT1-0 BT5 BT5-1 BT6 BT3-1
Dimension	OD4-114mm Wall Thickness 0.2-4.5mm Length below 15000mm
Oxidation Color	Silver white;Pale yellow;Golden yellow;Blue;Purple;Reddish-grey;Grey
Techniques	Hot Rolled,Cold Formed,Annealing,Pickling
Density	4.51g/cm3

Used/Application
Titanium tube is light in mass,high in strength and excellent in mechanical properties so it is widely used in heat exchange equipments such as tubular and tube coil heat exchanger,serpentine heat exchanger,condensor,evaporator and running pipe lines even Nuclear power industries use them as standard tube for their units.Besides,Titanium alloy is main structure materials in aerospace industry.
