JIS 30KG Rail Conforming To Japanese Industrial Standards With GNEE Rail
JIS 30KG Rail
JIS 30KG Rail is a type of railway track that adheres to the Japanese Industrial Standards (JIS). The "30KG" indicates its mass per meter, specifying its load-bearing capacity. This rail is commonly used in light rail systems, aligning with Japan's railway transportation standards.
GNEE Rail is a reliable manufacturer of railway products, providing a variety of steel rails, including light rail, heavy rail, and crane rail. Therefore, we can manufacture all types of rails you need. If you have specific needs, feel free to contact us.
Specification
Type: JIS 30KG Rail
Brand: GNEE rail
Length: 5-12m or other length based on customers' needs
Material: Q235B, 55Q
Standard: JIS E1103-91/JISE 1101-93
Application: Light rail

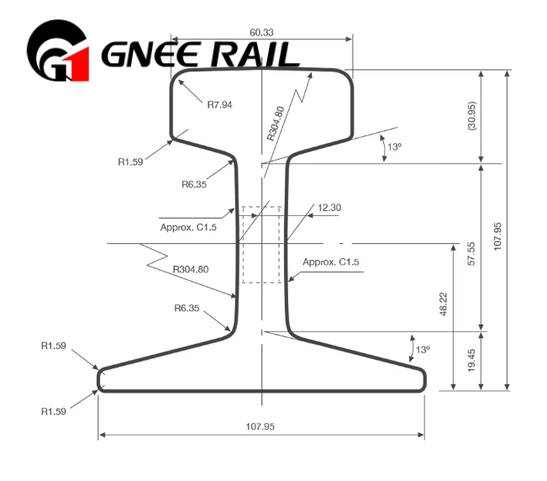

Drawing
Dimension
| Size | Dimension(mm) | Weight | Length (m) |
Material | |||
|---|---|---|---|---|---|---|---|
| Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
| JIS 30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | 9-10 | |
Steel Rail Supplier
GNEE Rail is a reliable manufacturer of railway products, providing a diverse range of steel rails, including light rail, heavy rail, and crane rail. Therefore, we can manufacture all types of rails you need. If you have specific needs, feel free to contact us.
