135LB Crane Rail GNEE Rail Your Partner For Superior Rail Fasteners
135LB Crane Rail
GNEE 135LB Crane Rail is a type of rail used for crane tracks, with "135LB" indicating the mass per yard.
GNEE Rail is a reliable manufacturer of railway products, providing a diverse range of steel rails, including light rail, heavy rail, and crane rail. Therefore, we can manufacture all types of rails you need. If you have specific needs, feel free to contact us.
Specification
| RAIL | 135 lb. CR |
| Area | 85, 94 cm2 13.32 in.2 |
| Kg/ m Lbs/yd | 66, 97 kg/m 135.0 lbs/yd |
| Mom. Inertia | 2105 cm4 50.59in.4 |
| Mom. Inertia Y-Y | 503 cm4 12.08 in.4 |
| Sec. Mod. Head | 282cm3 17.20 in.3 |
| Sec. Mod | 76, 4 cm3 4.66 in.3 |

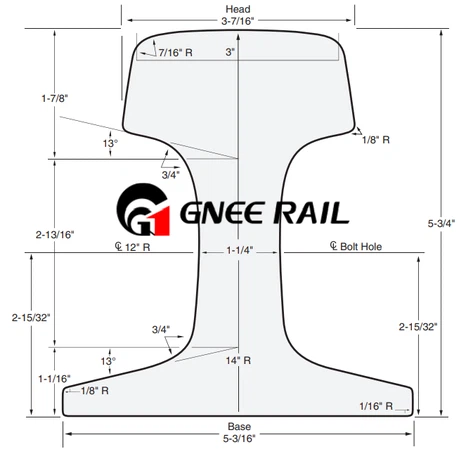

Drawing

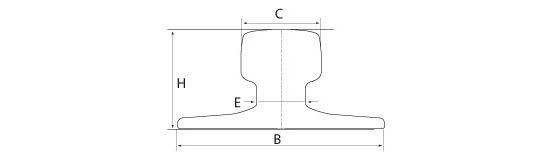

Dimension
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | |||
| CR135 | American | 146,05 | 131,76 | 87,30 | 31,80 | 85,80 | 66,97 | |

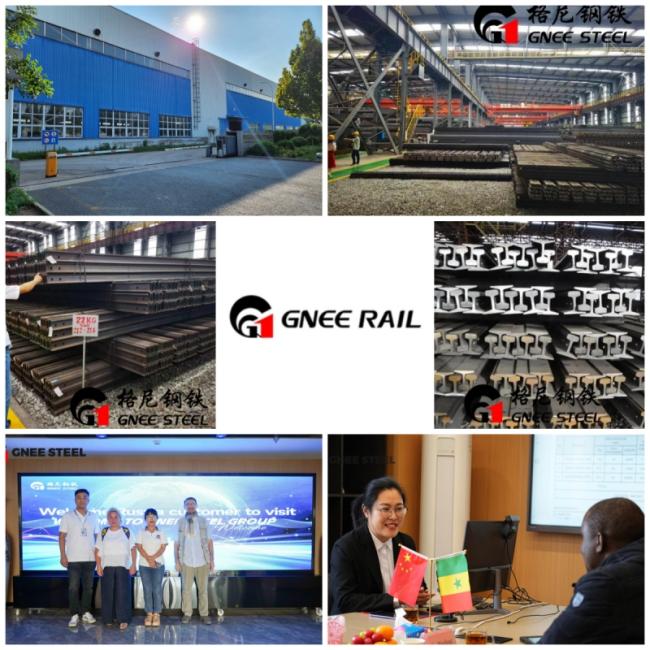

Steel rail workshop
GNEE Rail is a reliable manufacturer of railway products, offering a comprehensive selection of steel rails, including light rail, heavy rail, and crane rail. Therefore, we can manufacture all types of rails you need, ensuring that we can meet your specific requirements. If you have unique needs or specifications, please don't hesitate to reach out to us.
