SKL3 Rail Fasteners Meeting The Highest Standards At GNEE Rail
SKL3 Railway Clip
The SKL3 Railway Clip, also known as the SKL3 Tension Clamp or SKL3 Rail Track Clip, is a high-performance fastening solution designed to securely attach rails to concrete ties, providing long-lasting stability and reliability in track systems. GNEE Rail is your reliable supplier of rail fasteners, including rail clips, rail spikes, fish plates, and steel rails. We offer a range of services, including R&D, design, production, installation, and after-sales support. Backed by technical expertise, advanced equipment, and robust testing procedures, we ensure that all products meet the highest standards. Our products are widely used by railway bureaus, engineering divisions, steel mills, coking plants, local railways, and the mining sector across China. Custom solutions are available. Contact us for more details.
SKL3 Railway Clip specification
Item: SKL-3
Materials: 38Si7
Diameter: ø13
Weight: 0.53 kg
HRC: 44-48
Under Pressure: ≥950kgf
Fatigue Test: 5,000,000 times without breaking
Export Area: America, Hong Kong
SKL Railway Clip technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test | Countries |
| SKL1 | 60Si2Mn | ø13 | 133±2.3 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | America,brazil | |
| SKL3 | 60Si2Mn | ø13 | 120±2 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | America,brazil | |
| SKL12 | 60Si2Mn | ø13 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | America,brazil | ||
| SKL14 | 60Si2Mn | ø13 | 155±2 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | America,brazil |

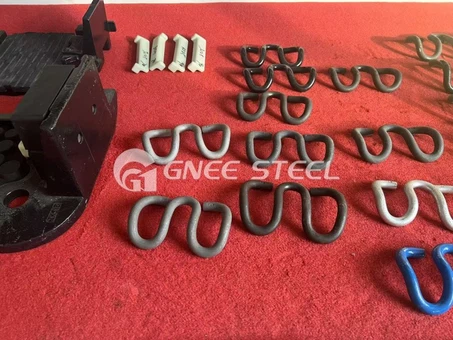

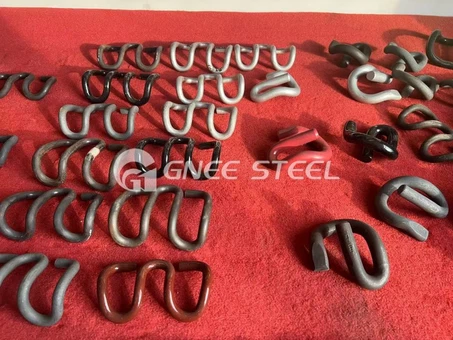

GNEE Railway Clip for sale

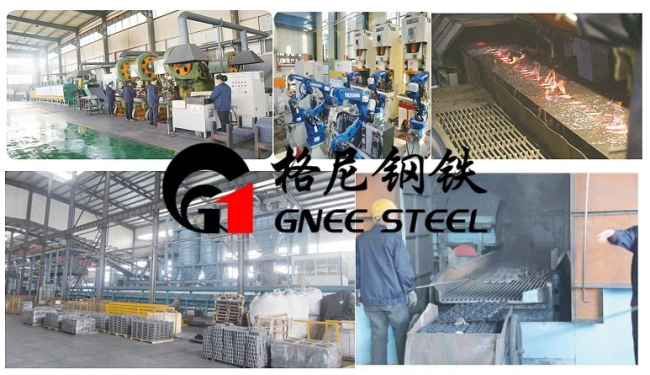

GNEE Railway Clip workshop
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
