High Durability Cast In Rail Shoulder In Railway
Price:
Negotiable
MOQ:
1 Tons
Delivery Time:
30 days
Brand:
Gnee Rail
Product Description
Cast in rail shoulder
Cast-in rail shoulder is embedded in the concrete ties,forming an integral part with the concrete. Its primary function is to provide support for securing other components of the railway track, such as elastic rail clips. GNEE cast-in shoulder is produced by casting iron, following standards such as BS EN 1563 (1997), DIN 1693, GB/T 1348-1988, GOST 7293 (1985), ISO1038, JIS G5502 (2001), KS D 4302, or NF EN 1563 (1997).
Cast in rail shoulder specification
| Materials | QT400-15, QT450-10, QT500-7, QT600-3, QT700-2, ZG25, ZG35, ZG45 |
| Model | Customized according to the provided drawing |
| Surface | Plain Oiled, Oxygen Black |
| Production Type | Sand casting, Hot Forging |

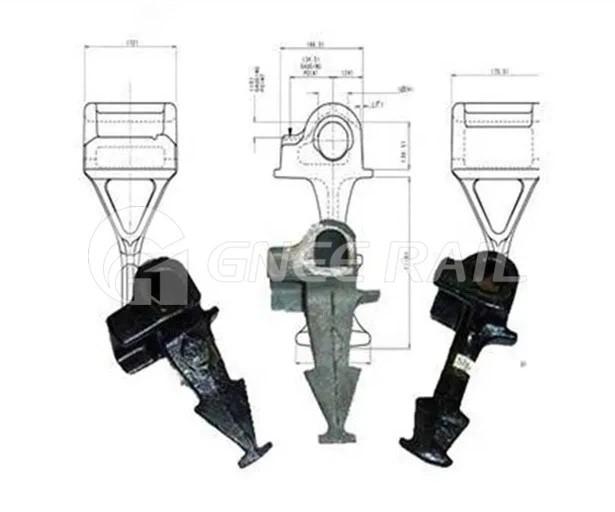

Cast in rail shoulder drawing
Cast in rail shoulder material technical parameter
| Material | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| QT400-15 (GGG40) | 400 | 250 | 15 |
| QT450-10 (GGG45) | 450 | 310 | 10 |
| QT500-7 (GGG50) | 500 | 320 | 7 |

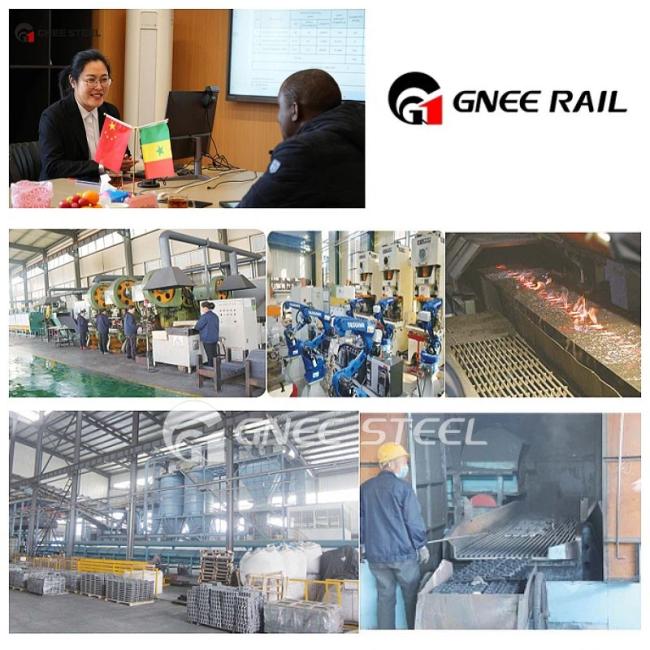

Cast in rail shoulder workshop
GNEE specializes in the production of various high-quality Cast in Rail Shoulder. We strictly monitor the quality of each product and welcome customers to send drawings for inquiries and customization.
