Customized SKL Rail Fasteners System For Railway Infrastructure Maintenance
SKL rail fastening system overview
The SKL rail fastening system plays a crucial role in maintaining the integrity of railway infrastructure. GNEE Rail is a professional manufacturer committed to producing and supplying a variety of SKL fastening systems, rail fasteners, steel rails, etc.
Skl rail fastening system components

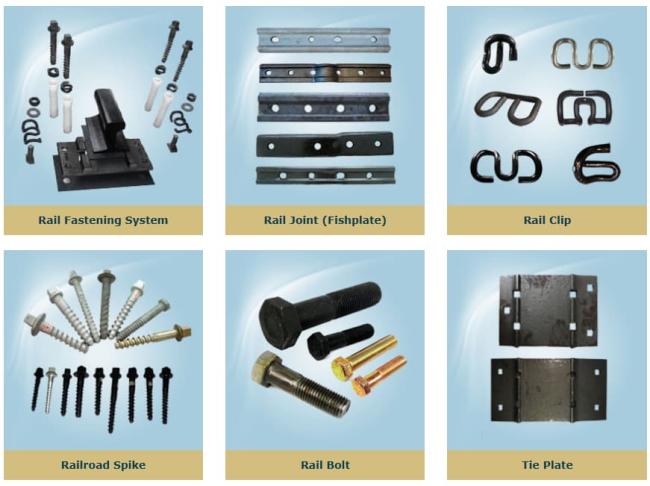

The SKL railway fastening system consists of SKL rail clips, rail pads, screw spikes, tie plates, washers, plastic dowels, track bolts, nuts, and more.
| SKL tension clip | SS35 screw spike | Flat washer | Plastic dowel | Guide plate | Rail pad | |
| Pieces required | 2 | 2 | 2 | 2 | 2 | 1 |
| Material | 60Si2CrA, 60Si2CrA, 38Si7 | Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# | Q235 | HDPE, Reinforced Nylon 66 (PA66) | Reinforced Nylon 66 (PA66) | EVA, or rubber |
| Size | SKL1, SKL3, SKL12, SKL14 | M24×150mm | Uls7 | For different sizes of screw spike | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered | |
| NOTE | Hardness: 42-47HRC 5 millions cycles without breaking. Standard: DIN17221, GB/T1222 | Standard: ISO898-1, UIC864-1 and NF F500-50 | Standard: EN10025, EN10139 | To insert into concrete sleeper | Customized products available. | |
Skl rail fastening system specification
| No. | Item | Spec. | Requirement | Material | Weight (Kg/pc) |
| 1 | Plastic Nylon Screw Dowed | 31*165 | Samples and drawings | Reinforced HDPE | 0.068 |
| 2 | Rail Pad | 199*158*6 | Samples and drawings | EVA | 0.18 |
| 3 | Angled Guide Plate | Samples and drawings | Wfp·14K | Reinforced PA66 | 0.17 |
| 4 | Tension Clamp | SKL-14 | Plain | 60SiCrA | 0.51 |
| 5 | Sleeper Screw with Plate Washer |
Screw: Ss25 24*161 Washer: 25*25*3.5 |
Screw: Class 5.6 Plain | Screw: 35# Plate: Q235 | 0.66 |
GNEE, a professional Skl railway fastening system supplier
GNEE rail specialized in manufacturing and supplying railway equipments, including railway fastening system, railway plastic sleeper, railway fasteners, rail joints, rail tracks, railway fastening system and other fastening parts for railway construction. Feel free to conatct us.
