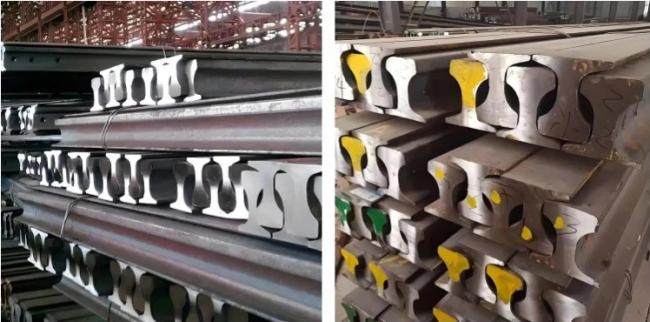

U71Mn 60KG Heavy Steel Rail For Long Lasting And Strong Railway Tracks
60KG heavy-duty steel rail refers to a type of steel rail with a weight of 60 kilograms per meter. This type of rail has a large cross-section and can withstand significant pressure and impact forces.
60KG heavy-duty steel rails have high tensile strength and hardness, and can withstand the impact and heavy load of train operation.
Due to its large cross-section, the 60KG heavy-duty rail has good stability on the track, which can reduce deformation and displacement of the track.
Due to its excellent wear resistance and corrosion resistance, 60KG heavy-duty steel rails have a longer service life, reducing the frequency of replacement and maintenance.

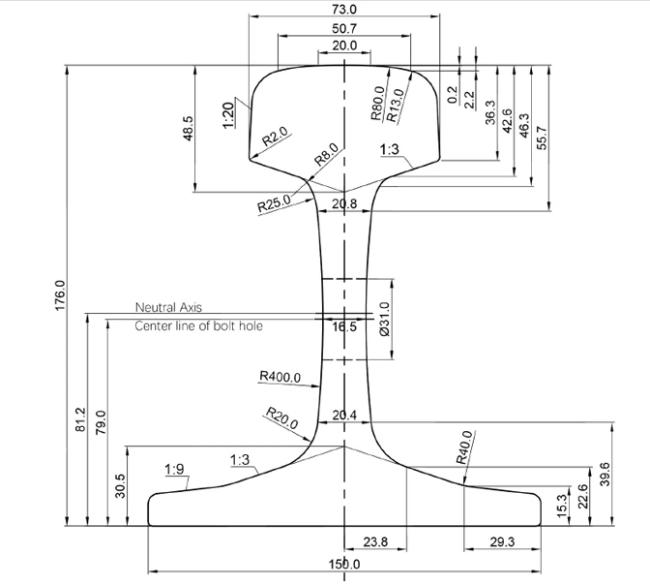

GB standard Heavy steel rail
| Size | Rail Height(mm) | Base Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) | Material | Length |
| A | B | C | t | ||||
| 38kg | 134 | 114 | 68 | 13 | 38.73 | 50Mn/U71mn | 6-12m |
| 43kg | 140 | 114 | 70 | 14.5 | 44.65 | 50Mn/U71mn | 6-12m |
| 50kg | 152 | 132 | 70 | 15.5 | 51.51 | 50Mn/U71mn | 6-12m |
| 60kg | 176 | 150 | 73 | 16.5 | 60.64 | 50Mn/U71mn | 6-12m |
| 75kg | 192 | 150 | 75 | 20 | 74.41 | 50Mn/U71mn | 6-12m |
Other Features
60KG heavy-duty steel rail made of U71Mn material:
Combining U71Mn steel grade with 60KG heavy-duty rails not only leverages the advantages of high strength and good wear resistance of U71Mn rails, but also has the characteristics of large cross-section and high stability of 60KG heavy-duty rails.
This type of steel rail has been widely used in railway construction, especially in high-speed railways, heavy-duty railways and other lines that need to withstand large loads and impacts.
FAQ
Q:How do I know if your rails are suitable for my railway project?
A:Our sales team can provide advice and technical support based on your project requirements to help you choose the most suitable rails.
Q:Do your rails have environmental certification?
A:Our rails meet the relevant requirements of environmental protection and have passed environmental certification to ensure that resource use and emissions during the production process meet environmental standards.
Q;Do your rails have anti-rust treatment?
A:Yes, we provide anti-rust treatment, such as hot-dip galvanizing, to ensure that the rails can maintain good performance in long-term use.
Q:Do you provide installation services?
A:We mainly provide the production and supply of rails, not installation services, but can provide installation guidance and technical support.
