Standard 18kg Light Steel Rails For Railway Factory Subway Rails

Price Negotiable
Price: Negotiable
MOQ: 1 Ton
Delivery Time: 30 Days
Brand: GNEE
Product Description






Products Description





18kg rails are relatively light, so the laying work is relatively simple, especially for some mines or mining areas with narrow and complex environments. The installation and maintenance costs are low. Compared with heavier rails (such as 30kg, 43kg rails, etc.), 18kg rails have lower production and transportation costs. For mine transportation systems with lighter loads, this is a more cost-effective option.



18kg mining rails are highly adaptable and can be used in a variety of mines and mine environments, especially in occasions with small transportation volumes or slow travel speeds, and can operate stably for a long time.



The mine environment is usually humid and the rails are susceptible to corrosion. The 18kg rails are made of high-quality steel and surface treatment technology, which enhances their corrosion resistance. At the same time, the surface hardness of the rails is high enough to effectively resist the wear of mine cars.





GB 18kg Light Steel Track



Parameters
type weight (kg/m) material length (m)
18Kg 18.06 55Q 6-8m

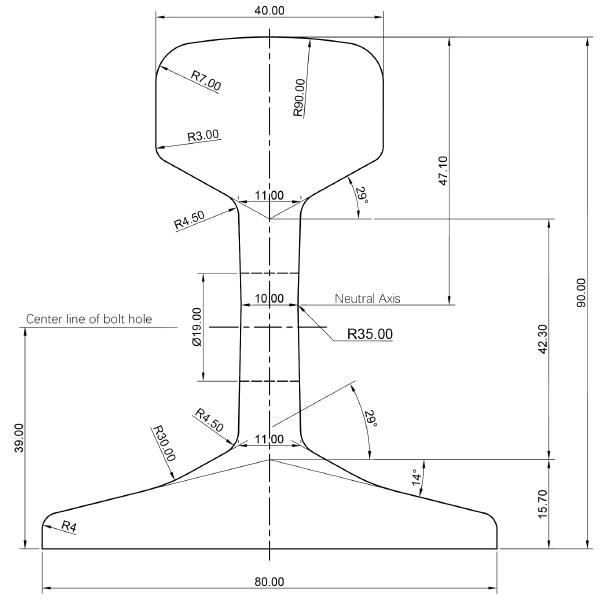

rail height (mm) bottom width (mm) head width (mm) web thinkness (mm)
90 80 40 10



Light Steel Rail



Light Steel Rail size Rail Height Bottom Width Head Width Web Thickness Weightkg/m
8kg 65 54 25 7 8.42
12kg 69.85 69.85 38.1 7.54 12.2
15kg 79.37 79.37 42.86 8.33 15.2
18kg 90 80 40 10 18.06
24kg 107 92 51 10.9 24.46
30kg 107.95 107.95 60.33 12.3 30.1
