Outdoor Hot-DIP Galvanized Steel Grating with 30mm Bearing Bar Pitch and Stainless Steel 304 for Trench Drain Channels
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Outdoor Steel Grating Solutions
High-quality hot-dip galvanized steel grating systems for trench drain channels and industrial applications, available in various configurations to meet specific load and corrosion resistance requirements.
Product Specifications & Applications
30mm Bearing Bar Pitch
The most widely used industrial grating with superior surface impact resistance and durability for demanding applications.
40mm Bearing Bar Pitch
Economical and lightweight option ideal for installations with smaller spans where weight optimization is crucial.
60mm Bearing Bar Pitch (Mining Grade)
Specifically engineered for mining industry applications, designed to prevent mineral splash and withstand harsh processing environments.
30mm/76mm Combination Pitch

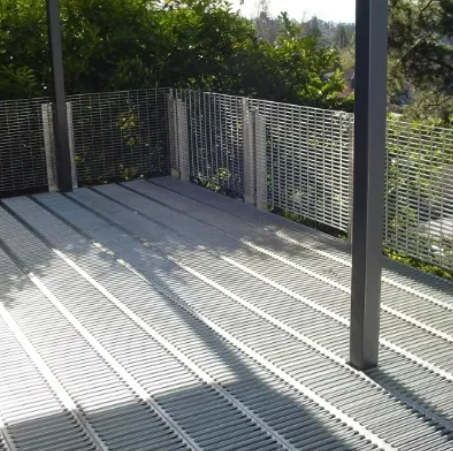

The most popular global standard for walkways, platforms, and general industrial applications requiring balanced strength and coverage.
Technical Specifications
Material Options: Stainless Steel 304, 304L, 316, 316L
Available Finishes: Mill finish, commercial clean, electro-polished
Bearing Bar Spacing: 1-3/16" to 11/16"
Cross Bar Spacing: 2" or 4" on center
Available Finishes: Mill finish, commercial clean, electro-polished
Bearing Bar Spacing: 1-3/16" to 11/16"
Cross Bar Spacing: 2" or 4" on center
Material Performance Comparison
| Type | Description | Tensile Strength | Yield |
|---|---|---|---|
| 304 | Excellent corrosion resistance, high tensile strength. Ideal for chemical processing, food industries, power plants, and wastewater treatment. Suitable for high-temperature applications. | 75,000 psi (min.) | 30,000 psi (min.) |
| 316 | Superior corrosion and pitting resistance compared to 304. Excellent heat resistance for chemical, pulp, paper processing, marine environments, textile equipment, and petroleum refining. | 75,000 psi (min.) | 30,000 psi (min.) |
Load & Deflection Standards
| Metric Legend | Imperial Legend |
|---|---|
| U = Safe Uniform Load (kPa) C = Safe Concentrated Load (kN/meter of grating width) D = Deflection (mm) |
U = Safe Uniform Load (lbs./ft²) C = Safe Concentrated Load (lbs./foot of grating width) D = Deflection (inches) |
Stainless Steel Load Conversion Factors
| Stainless Steel Grade | Load/Deflection | Multiply Carbon Steel Load Tables By | Based on Maximum Allowable Fiber Stress |
|---|---|---|---|
| 304 Stainless Steel | U C D |
1.111 1.111 1.151 |
20,000 P.S.I. (137.9 MPa) |
| 304L Stainless Steel | U C D |
0.917 0.917 0.949 |
16,500 P.S.I. (113.8 MPa) |
| 316 Stainless Steel | U C D |
1.111 1.111 1.151 |
20,000 P.S.I. (137.9 MPa) |
| 316L Stainless Steel | U C D |
0.917 0.917 0.949 |
16,500 P.S.I. (113.8 MPa) |
Additional Specifications:
- Bearing bar pitches: 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90mm (25, 30, 34 and 40mm recommended)
- Cross bar pitches: 24-200mm (50mm, 76mm, and 100mm recommended)
- Bearing bar shapes: F - Plain style, S - Serrated style, I - I-section style
- Surface treatments: G - Hot dipped galvanized, P - Painted, U - Untreated
